Footpegs для мотоциклов Honda CX650 (1983)

Москва и регионы России

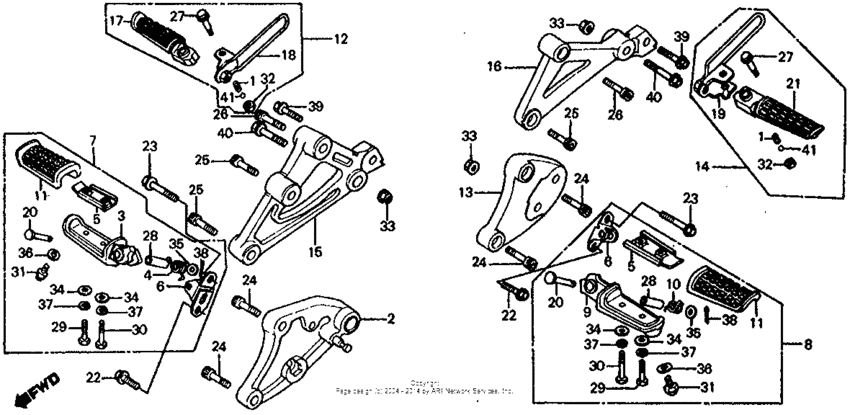

Footpegs

Honda CX650

Footpegs

Footpegs

1

1

2

3

4

5

5

6

6

7

8

9

10

11

11

12

13

14

15

16

17

18

19

20

20

21

22

22

23

23

24

24

24

24

25

25

25

26

26

27

27

28

28

29

29

30

30

31

31

32

32

33

33

33

34

34

34

34

35

35

36

36

37

37

37

37

38

38

39

39

40

40

41

41

#

oem код

название

цена

1

Пружина

Пружина

2

Holder,r.step

Holder,r.step

3

Arm,r.step

Arm,r.step

4

Spring, r

Spring, r

5

Pl.,step stopper

Pl.,step stopper

6

Bracket,l.step

Bracket,l.step

7

Step,r.main

Step,r.main

8

Step,l.main

Step,l.main

9

Arm,l.step

Arm,l.step

10

Spring, l

Spring, l

11

Rubber,step

Rubber,step

12

Step,r.pillion

Step,r.pillion

13

Holder,l.step

Holder,l.step

14

Step,l.pillion

Step,l.pillion

15

Brkt,r.pillion

Brkt,r.pillion

16

Brkt,l.pillion

Brkt,l.pillion

17

Arm,l.pillion

Arm,l.pillion

18

Brkt,r.pillion

Brkt,r.pillion

19

Brkt,l.pillion

Brkt,l.pillion

20

Pin,step joint

Pin,step joint

21

Arm,r.pillion

Arm,r.pillion

22

Bolt (8x22)

Bolt (8x22)

23

Bolt (8x35)

Bolt (8x35)

24

Болт (8mm)

Болт (8mm)

25

Bolt, socket (8x40)

Bolt, socket (8x40)

26

Болт ,8X45

Болт ,8X45

27

Bolt,pillion step

Bolt,pillion step

28

Collar,step pivot

Collar,step pivot

29

Болт

Болт

30

Bolt, hex., 5x28

Bolt, hex., 5x28

31

Bolt, cap (8x12)

Bolt, cap (8x12)

32

Nut, hex., 6mm

Nut, hex., 6mm

33

Гайка

Гайка

FLANGE, 10MM

34

Шайба

Шайба

PLAIN, 5MM

35

Шайба

Шайба

PLAIN, 8MM

36

Washer, plain, 8mm

Washer, plain, 8mm

37

Шайба

Шайба

SPRING, 5MM

38

Штифт

Штифт

39

Bolt, flange, 8x28

Bolt, flange, 8x28

40

Bolt, flange, 10x40

Bolt, flange, 10x40

41

Шарик

Шарик
