Cx500c taillight для мотоциклов Honda CX500 (1982)

Москва и регионы России

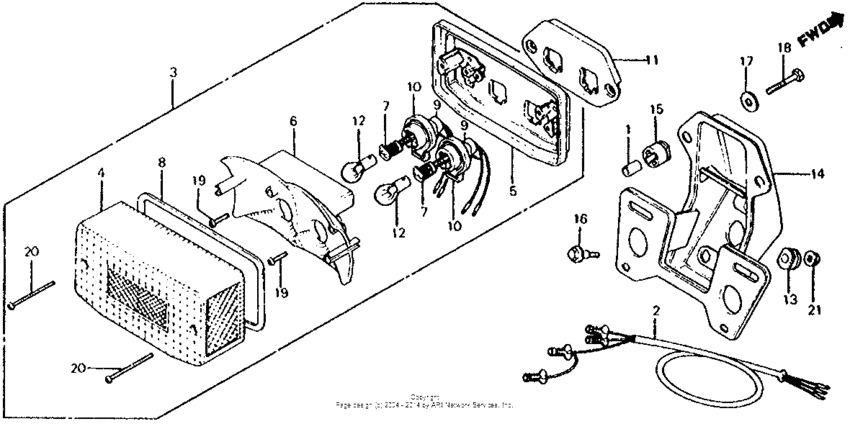

Cx500c taillight

Honda CX500

Cx500c taillight

Cx500c taillight

1

2

3

4

5

6

7

7

8

9

9

10

10

11

12

12

13

14

15

16

17

18

19

19

20

20

21

#

oem код

название

цена

1

Манжета

Манжета

DISTANCE

2

Harness,wire sub

Harness,wire sub

3

Unit,tail light

Unit,tail light

4

Lens,taillight

Lens,taillight

5

Base,comp,tail

Base,comp,tail

6

Отражатель

Отражатель

7

Cord,tall light

Cord,tall light

8

Packing,lens

Packing,lens

9

Socket comp.

Socket comp.

10

Rubber,cushion

Rubber,cushion

11

Pkg,tail

Pkg,tail

12

Bulb (12v27/8w)

Bulb (12v27/8w)

13

Rubber, rr. fender cushion

Rubber, rr. fender cushion

14

Bracket,number

Bracket,number

15

Rubber, fender

Rubber, fender

16

Bolt, flange, 6x20

Bolt, flange, 6x20

17

Washer, 6.5x18

Washer, 6.5x18

18

93000-060-280-A

Bolt,hex.,6x28

Bolt,hex.,6x28

19

93500-040-120-A

Болт

Болт

PAN, 4X12

20

93500-040-554-J

Screw,pan,4x55

Screw,pan,4x55

21

Гайка

Гайка

FLANGE, 6MM
