Фонарь для мотоциклов Honda CT125 (1977)

Москва и регионы России

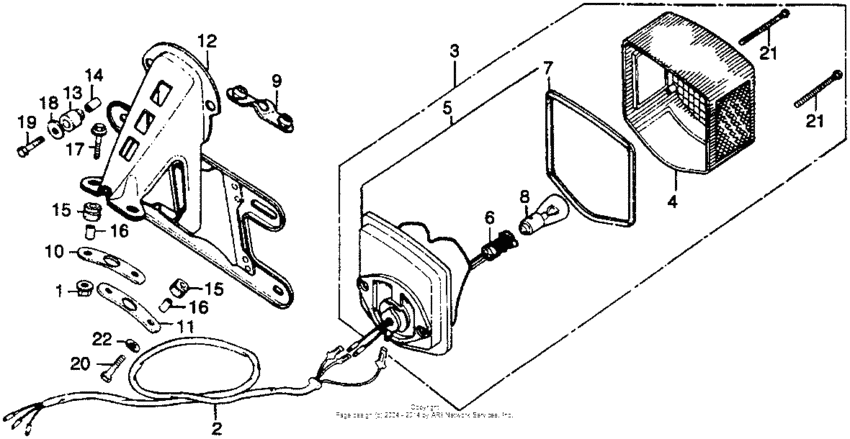

Фонарь

Honda CT125

Фонарь

Фонарь

1

2

3

4

5

6

7

8

9

10

11

12

13

13

14

14

15

15

16

16

17

18

19

19

20

21

21

22

#

oem код

название

цена

1

Гайка

Гайка

FLANGE, 6MM

2

Sub cord,tail

Sub cord,tail

3

Unit,tail light

Unit,tail light

4

Lens,tail light

Lens,tail light

5

Base,tail light

Base,tail light

6

Wire, taillight

Wire, taillight

7

Packing,tail lt.

Packing,tail lt.

8

Bulb,stop & tail

Bulb,stop & tail

9

Plate a,no.brkt

Plate a,no.brkt

10

Plate a,bracket

Plate a,bracket

11

Plate,b number

Plate,b number

12

84701-128-670SG

Bracket,no.plate

Bracket,no.plate

13

Опора

Опора

Use up to Frame SN 1015355

13

Pkg.b,tail light

Pkg.b,tail light

Use from Frame SN 1015356

14

Collar no bracket

Collar no bracket

Use up to Frame SN 1015355

14

Collar battery

Collar battery

Use from Frame SN 1015356

15

Rubber, fender

Rubber, fender

16

Collar, number bracket setting

Collar, number bracket setting

17

Болт

Болт

18

Washer,18m/m

Washer,18m/m

19

Болт

Болт

Use from Frame SN 1015356

19

Bolt, hex., 5x20

Bolt, hex., 5x20

Use up to Frame SN 1015355

20

Болт

Болт

21

93500-040-554-J

Screw,pan,4x55

Screw,pan,4x55

22

Шайба

Шайба

PLAIN, 6MM
