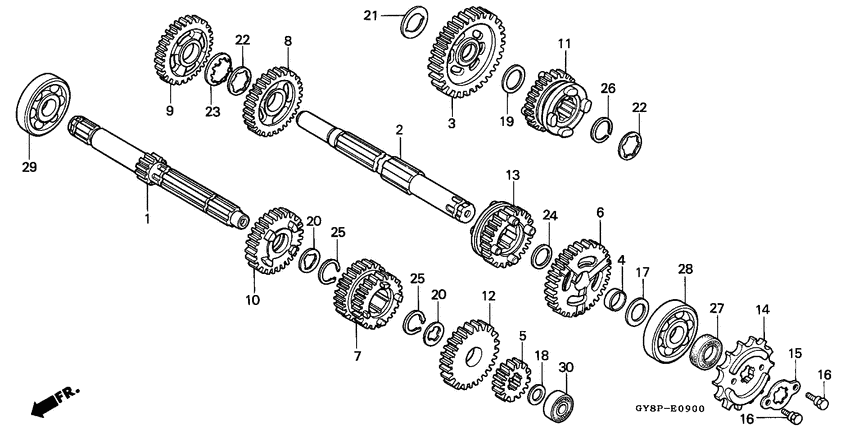

Трансмиссия

Honda CRM50R

Honda
Трансмиссия
#oem кодцена
1
23211-GY8-900
Shaft,main transm
2
23221-166-601
Countershaft, trans
3
23420-GJ1-830
Gear comp.,counte
4
23431-166-600
Втулка
5
23441-GJ1-830
Gear,mainshaft se
6
23451-GJ1-830
Gear,countershaft
7
23461-GJ1-830
Gear,mainshaft th
8
23471-GJ1-830
Gear,countershaft
9
23482-GJ1-830
Gear,countershaft
10
23491-GJ1-830
Gear,mainshaft fi
11
23501-GJ1-830
Gear,countershaft
12
23511-GJ1-830
Gear,mainshaft si
13
23515-GJ1-830
Gear,countershaft
14
23800-GB4-000
Звездочка
замена
23800-041-010
Sprocket,drive
15
23802-041-010
Пластина
16
90084-041-000
Болт
17
90446-357-000
Washer, thrust, 17.2mm
18
90452-166-600
Washer, thrust, 12mm
19
90452-437-000
Washer, thrust, 16.5mm
20
90461-115-000
Шайба
21
90463-166-000
Шайба
22
90464-166-000
Washer a (19mm)
23
90465-166-600
Washer, lock (19mm)
24
90466-166-600
Шайба
25
90601-001-000
Circlip, external, 17mm
26
90602-166-010
Стопорное кольцо (19mm)
27
91201-415-013
Oil seal, 17x28x7 (arai)
28
96100-6303000
Bearing, radial ball, 6303
29
96120-6303000
Bearing (6303)
30
96140-6001000
Bearing (6001)
