Трансмиссия для мотоциклов Honda CRM125R (1994)

Москва и регионы России

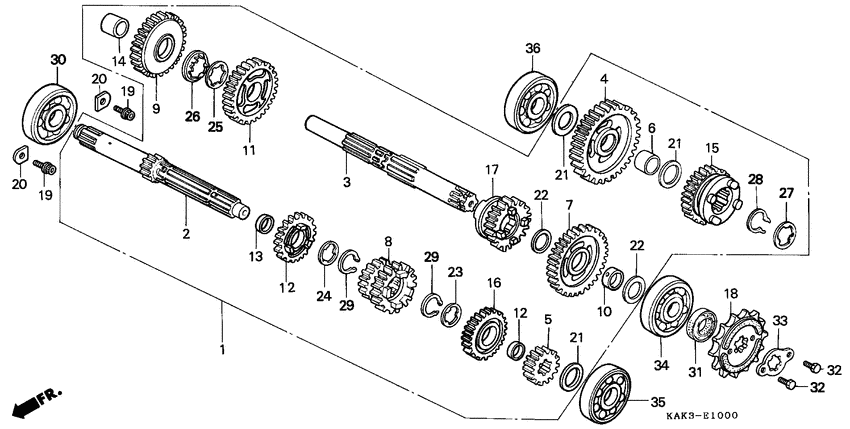

Трансмиссия

Honda CRM125R

Трансмиссия

Трансмиссия

1

2

3

4

5

6

7

8

9

10

11

12

12

13

14

15

16

17

18

19

19

20

20

21

21

21

22

22

23

24

25

26

27

28

29

29

30

31

31

32

32

33

34

35

36

#

oem код

название

цена

1

Mission assembly

Mission assembly

2

Shaft comp.,main

Shaft comp.,main

3

Shaft,counter

Shaft,counter

4

Gear,countershaft

Gear,countershaft

5

Gear,mainshaft se

Gear,mainshaft se

6

Bush,17mm

Bush,17mm

7

Gear,countershaft

Gear,countershaft

8

Gear,mainshaft th

Gear,mainshaft th

9

Gear,countershaft

Gear,countershaft

10

Bush,20mm

Bush,20mm

11

Gear,countershaft

Gear,countershaft

12

Gear,mainshaft fi

Gear,mainshaft fi

13

Втулка (20x22x10)

Втулка (20x22x10)

14

Bush,22mm

Bush,22mm

15

Gear,countershaft

Gear,countershaft

16

Gear,mainshaft si

Gear,mainshaft si

17

Gear,countershaft

Gear,countershaft

18

Sprocket,drive (1

Sprocket,drive (1

19

Болт (6х14)

Болт (6х14)

20

Plate,brg hold

Plate,brg hold

21

Washer, 17mm

Washer, 17mm

22

Washer, thrust, 20mm

Washer, thrust, 20mm

23

Washer,spline,20m

Washer,spline,20m

24

Washer,spline 20m

Washer,spline 20m

25

Шайба

Шайба

26

Шайба, стопорная

Шайба, стопорная

27

Washer,spline 22m

Washer,spline 22m

28

Cir clip,22mm

Cir clip,22mm

29

Регулировочное кольцо (20mm)

Регулировочное кольцо (20mm)

30

Подшипник

Подшипник

замена

Bearing (17x42x12)

Bearing (17x42x12)

31

Oil seal,20x34x7

Oil seal,20x34x7

31

Oil seal,20x34x7

Oil seal,20x34x7

32

Bolt, hex., 6x10

Bolt, hex., 6x10

33

Plate b, fixing

Plate b, fixing

34

Bearing, radial ball, 6204

Bearing, radial ball, 6204

35

Bearing, radial ball, 6003u

Bearing, radial ball, 6003u

36

Bearing, radial ball, 6203u

Bearing, radial ball, 6203u
