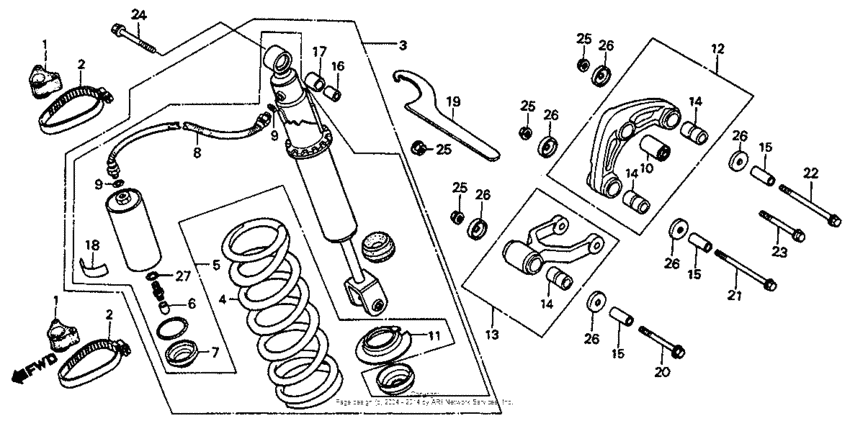

Rear shock absorber 82

Honda CR80R

Honda
Rear shock absorber 82
#oem кодцена
1
50250-GC4-000
Rub,sub tank mt.
2
50252-GC4-000
Band, sub-tank
3
52400-GC4-671
Shock absorber, rr.
4
52401-GC4-811
Spring, rr. shock
4
52401-GC4-003
Spg,rr,cush
5
52410-GC4-671
Damper,rr.cushion
6
52425-381-771
Чашка воздушного клапана
7
52427-MA0-003
Cap,subtank
8
52440-GC4-003
Шланг соединительный
9
52441-MA0-003
O ring 1.9x9.8
10
52451-GC4-000
Bush,damper lower
11
52459-GC4-003
Seat,rr,cush spg
12
52460-GC4-000
Arm, shock absorber
13
52470-GC4-000
Rod,cushion conn.
14
52472-MA0-013
Втулка
15
52473-MA0-020
Манжета
16
52486-GC4-003
Collar,damper,upp
17
52489-GC4-003
Bush,damper,upper
18
87516-MA0-003
Наклейка
19
89201-GC4-810
Pin,spanner
20
90105-GC4-003
Bolt,flange,10x64
21
90128-GC4-003
Bolt,flange.10x67
22
90129-GC4-003
Bolt,flange,1
23
90153-GC4-003
Bolt,flange,1
24
90153-965-000
Bolt (10x58)
25
90304-GA6-003
Nut, axle, 10mm
26
91262-MA0-015
Seal, rr.
27
91318-ME5-003
O-ring, 5.6x1.9 (arai)
27
91305-323-000
O-ring, 5.8x1.9
