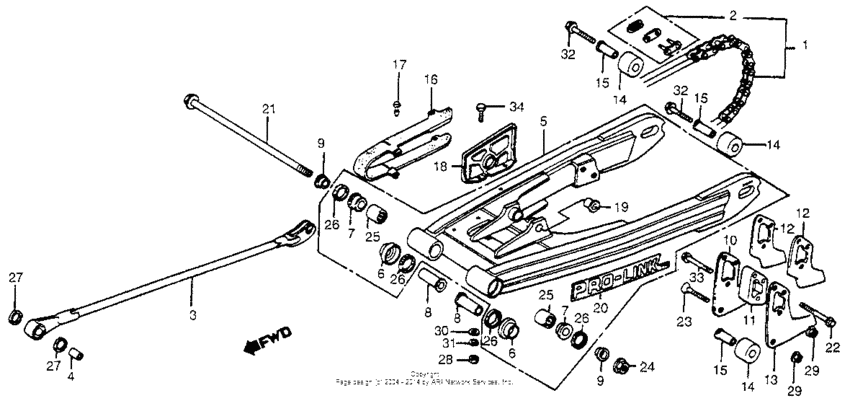

Swingarm + drive chain 81

Honda CR450

Honda
Swingarm + drive chain 81
#oem кодцена
1
40530-KA5-812
Chain,drive
1
40530-KA5-811
Chain,drive
1
40530-KA5-003
Chain,drive
2
40531-958-003
Joint,drive chain
2
40531-KA4-004
Joint,chain
3
43431-KA5-000ZA
Arm,brk.stpr*r-23
4
43433-444-000
Collar,distance
5
52000-KA5-010
Swingarm assy., rr.
6
52108-KA4-000
Holder,dust seal
7
52109-KA4-003
Bush,pivot thrust
8
52141-KA4-000
Collar a,rr.fork
9
52142-KA4-000
Collar b,rr fork
10
52146-KA4-000
Guide,chain r
11
52147-KA4-010
Slider,chain
12
52148-KA4-000
Slider,chain
13
52156-KA4-000
Guide,chain l
14
52158-MA0-000
Roller,chain
15
52159-MA0-000
Collar,roller
16
52170-KA4-000
Slider,chain
17
52171-KA4-003
Clip,chain slider
18
52180-KA4-000
Mud guard,chain
19
52464-KA4-000
Washer,cush.arm
20
87121-MA0-300
Emb,rr fork
21
90117-KA4-000
Bolt,rr fork
22
90123-400-000
Bolt,hex.,8x55
23
90126-KA4-000
Screw, flat, 8x45
24
90301-430-000
Nut, rr.
25
91071-MA0-003
Подшипник задний
26
91253-KA4-000
Dust seal,26x36x4
27
91302-430-003
O-ring,20x1.8
28
94001-060-800-S
Гайка
29
94050-08000
Гайка
30
94101-06800
Шайба
31
94111-06800
Шайба
32
95701-080-400-8
Болт
33
95701-080-450-0
Болт
34
95701-060-160-8
Болт
