Rear wheel 81 для мотоциклов Honda CR250R (1981)

Москва и регионы России

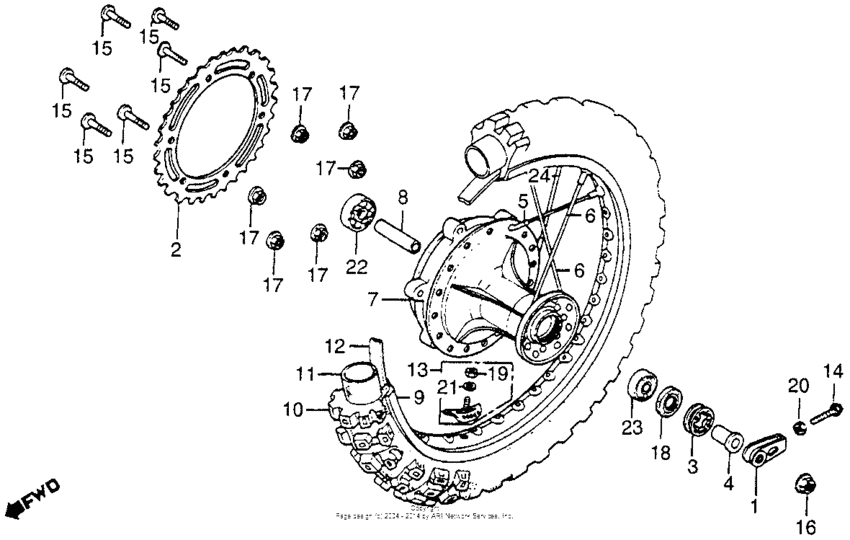

Rear wheel 81

Honda CR250R

Rear wheel 81

Rear wheel 81

1

2

2

2

3

4

5

6

6

7

8

9

10

11

12

13

14

15

15

15

15

15

15

16

17

17

17

17

17

17

18

19

20

21

22

23

24

#

oem код

название

цена

1

Adjuster,chain

Adjuster,chain

2

Звездочка

Звездочка

(Optional).

2

Sprkt,final 54t

Sprkt,final 54t

2

Sprkt,final 52t

Sprkt,final 52t

(Optional).

3

Retainer,bearing

Retainer,bearing

4

Collar,rr wheel

Collar,rr wheel

5

Spoke set a,rr.

Spoke set a,rr.

6

Spoke set b,rr.

Spoke set b,rr.

7

Втулка

Втулка

8

Collar,rr.dist.

Collar,rr.dist.

9

Диск

Диск

10

Tire (110/100-18)

Tire (110/100-18)

11

Tube (100/100-18)

Tube (100/100-18)

12

Flap, tire (2.15-18)

Flap, tire (2.15-18)

13

Стопор

Стопор

14

Bolt,chain adj

Bolt,chain adj

15

Винт (8x31)

Винт (8x31)

16

Nut, axle (18mm)

Nut, axle (18mm)

17

Nut, hex., 8mm

Nut, hex., 8mm

18

Oil seal (28x42x7)

Oil seal (28x42x7)

19

94001-080-000-S

Гайка

Гайка

HEX., 8MM

20

94002-080-000-S

Гайка

Гайка

HEX., 8MM

21

Шайба

Шайба

SPRING, 8MM

22

96140-620-401-0

Подшипник (6204u)

Подшипник (6204u)

23

Bearing (6304u)

Bearing (6304u)

24

97820-791-60U-0

Spoke set,bs7x160

Spoke set,bs7x160
