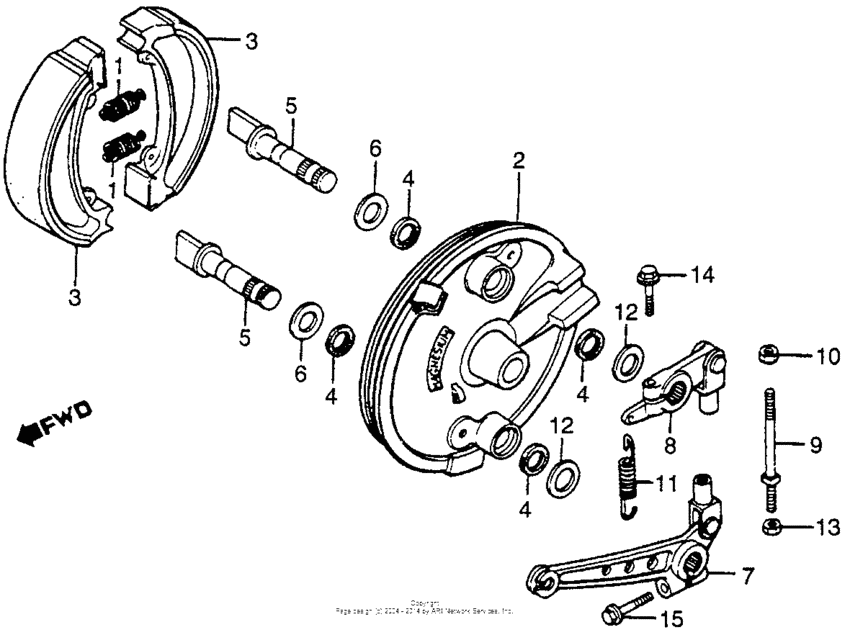

Front brake panel 83

Honda CR250R

Front brake panel 83

Front brake panel 83

1

1

2

3

3

4

4

4

4

5

5

6

6

7

8

9

10

11

12

12

13

14

14

15

#

oem код

название

цена

NI

Shoe kit, brake

Shoe kit, brake

1

Скоба

Скоба

2

Panel,fr.brake

Panel,fr.brake

3

Shoe,fr brake

Shoe,fr brake

4

Сальник

Сальник

5

Cam,fr.brake

Cam,fr.brake

6

Seat,fr.brk.cam

Seat,fr.brk.cam

7

Arm a,fr.brake

Arm a,fr.brake

8

Arm b,fr.brake

Arm b,fr.brake

9

Rod,brk.arm.conn.

Rod,brk.arm.conn.

10

Nut, hex., 6mm (left hand thread)

Nut, hex., 6mm (left hand thread)

11

Spg,brk.arm ret.

Spg,brk.arm ret.

12

Washer, 14mm

Washer, 14mm

13

94002-060-000-S

Гайка

Гайка

HEX., 6MM

14

96001-060-250-0

Болт

Болт

FLANGE, 6X25

14

Bolt, flange, 6x25

Bolt, flange, 6x25

15

Bolt, flange, 6x32

Bolt, flange, 6x32
