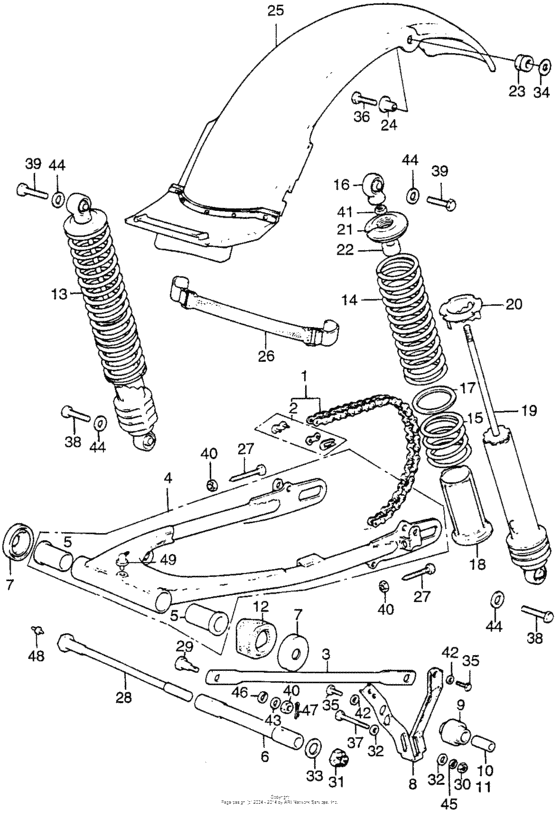

Swingarm + rear shock absorber + rear fender

Honda CR125

Swingarm + rear shock absorber + rear fender

Swingarm + rear shock absorber + rear fender

1

1

2

3

4

4

4

5

5

6

6

7

7

7

7

8

9

10

11

12

13

14

14

14

15

15

16

17

18

19

20

21

22

23

24

24

25

26

27

27

28

28

29

30

31

32

32

33

34

35

35

36

37

38

38

39

39

40

40

40

41

42

42

43

44

44

44

44

45

46

47

48

49

#

oem код

название

цена

1

Chain,drive 124l

Chain,drive 124l

1

Chain,drive 120l

Chain,drive 120l

2

Коробка соединительная

Коробка соединительная

3

Arm,rear.brake

Arm,rear.brake

4

52110-360-700-B

Swingarm *nh1*

Swingarm *nh1*

Use from Frame SN 1015499

4

52110-360-305-B

Swingarm, rr. *nh1*

Swingarm, rr. *nh1*

Use from Frame SN 1015499

4

52100-360-305-B

Rear fork set

Rear fork set

Use up to Frame SN 1015498

5

Bush,pivot thrust

Bush,pivot thrust

6

Collar,rearfork

Collar,rearfork

Use from Frame SN 1015499

6

Collar,rr.fork

Collar,rr.fork

Use up to Frame SN 1015498

7

Cap, dust seal

Cap, dust seal

7

Крышка

Крышка

8

52156-360-000-B

Направляющая chain

Направляющая chain

9

Roller,tensioner

Roller,tensioner

10

Collar,tensioner

Collar,tensioner

Use up to Frame SN 1000064

11

Collar,tensioner

Collar,tensioner

Use from Frame SN 1000065

12

Slider,chain

Slider,chain

13

Cushion,rr

Cushion,rr

14

Spring a, rr. shock

Spring a, rr. shock

14

Spring a, rr. shock

Spring a, rr. shock

14

Spring a, rr. shock

Spring a, rr. shock

15

Spring a, rr. shock

Spring a, rr. shock

15

Spring b, rr. shock

Spring b, rr. shock

16

Joint,upper

Joint,upper

17

Joint, rr.

Joint, rr.

18

Направляющая задняя

Направляющая задняя

19

Демпфер задний

Демпфер задний

20

Adjuster, rr.

Adjuster, rr.

21

Seat, rr. (upper)

Seat, rr. (upper)

22

Отбойник

Отбойник

23

Rubber, fr. fender mounting

Rubber, fr. fender mounting

24

Collar, rr. fender

Collar, rr. fender

24

Фланец

Фланец

25

80100-360-000NQ

Fender,rear

Fender,rear

26

Band,fender set

Band,fender set

27

Bolt,chain adjust

Bolt,chain adjust

28

Bolt,rearfork

Bolt,rearfork

28

Bolt,rr.fork

Bolt,rr.fork

Use up to Frame SN 1015498

29

Bolt, brake stopp

Bolt, brake stopp

30

Nut, roller set

Nut, roller set

31

Nut,self lock

Nut,self lock

32

Шайба

Шайба

Use up to Frame SN 1000064

33

Washer, tensioner arm

Washer, tensioner arm

34

Washer, 6.5x20

Washer, 6.5x20

35

Bolt, hex., 6x8

Bolt, hex., 6x8

36

Болт

Болт

HEX., 6X22

37

Болт

Болт

38

Bolt, hex., 10x32

Bolt, hex., 10x32

39

Болт

Болт

40

94001-080-000-S

Гайка

Гайка

HEX., 8MM

41

94001-100-000-S

Гайка

Гайка

HEX., 10MM

42

Шайба

Шайба

PLAIN, 6MM

43

Шайба

Шайба

PLAIN, 8MM

44

Washer, plain, 10mm

Washer, plain, 10mm

45

Шайба

Шайба

SPRING, 6MM

46

Шайба

Шайба

SPRING, 8MM

47

Штифт

Штифт

48

Nipple,grease4.5

Nipple,grease4.5

Use up to Frame SN 1015498

49

Bolt,removing,16

Bolt,removing,16

Use from Frame SN 1015499
