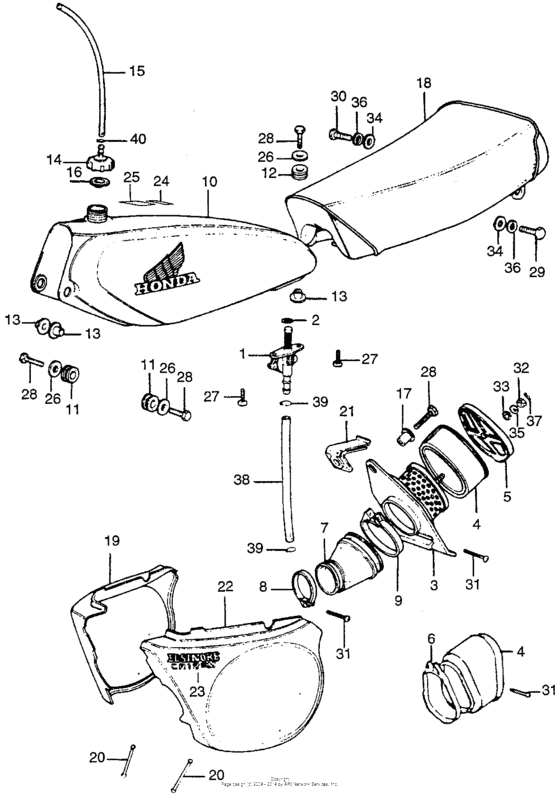

Fuel tank + air cleaner + seat

Honda CR125

Honda
Fuel tank + air cleaner + seat
#oem кодцена
1
16957-361-000
Спускной кран
1
16950-360-000
Cock.fuel,cr125m
2
91320-MJ6-003
Прокладка
2
91302-ZE9-003
O-ring, 11.8x2.4
3
17211-360-700
Base,air cleaner
4
17214-360-700
Elment,aircleaner
6
17215-360-700
Band,air cleaner
7
17253-360-700
Tube,air cleaner
8
9501850250
Band, air cleaner connecting tube (50)
9
17257-HB5-000
Band, air cleaner
10
17500-360-710NH
Tank, fuel *r23/nh1*
10
17500-360-306NH
Tank, fuel *r23/nh1*
11
17507-360-000
Rubber,tank mount
12
17507-358-000
Rubber,tank front
12
17507-360-000
Rubber,tank mount
13
17508-361-000
Collar,tank front
13
17508-357-000
Collar,tank set
14
17510-355-010
Cap,fuel tank
15
17520-357-000
Патрубок
16
17624-896-750
Packing, fuel cap
17
80109-329-000
Collar c,6.3 mt.
18
77100-360-000
Seat comp
19
83500-360-700UQ
Cover,r.side
19
83500-360-000SS
Cover,right side
20
83503-360-700
Band,side cover
21
83504-360-000
Опора
22
83600-360-700UQ
Cover,l.side
22
83600-360-000SS
Cover,left side
23
87203-360-710
Emblem,side cover
24
87208-357-670
Mark b,cushion
25
87560-357-671
Этикетка с предупреждением
26
90501-040-000
Washer, seat setting
27
92101-06012-0A
Болт
27
9210106012
Болт
27
92101-06016-0A
Болт
28
92101-06022-0A
Болт
29
92101-08016-0A
Bolt, hex., 8x16
31
93500-040200A
Screw, pan, 4x20
34
94102-08000
Washer, plain, 8mm
36
94111-08000
Шайба
38
95001-550-0360M
Шланг(5.5x3000)
39
95002-02100
Зажим
