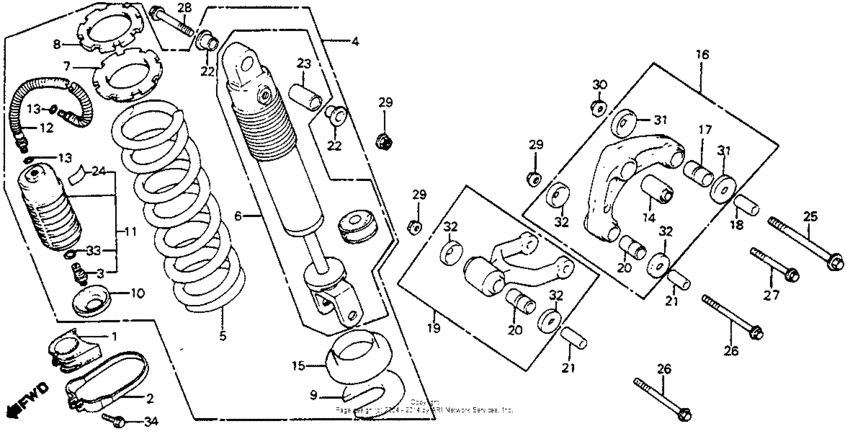

Rear shock absorber + link 81

Honda CR125R

Honda
Rear shock absorber + link 81
#oem кодцена
1
50250-KA3-000
Rub.,sub tank mt.
2
50252-KA3-000
Band,sub tank
3
51456-469-013
Valve, air
4
52400-KA3-671
Cushion assy,rr.
5
52401-KA3-821
Spring, rr. shock
5
52401-KA3-811
Spring, rr. shock
5
52401-KA3-003
Spring,rr.cushion
6
52420-KA3-305
Damper unit, rr.
7
52422-KA4-003
Регулировщик
8
52423-KA4-003
Гайка регулировщика
9
52424-KA4-003
Stopper,spg.seat
10
52427-MA0-003
Cap,subtank
11
52430-MA0-305
Sub-tank assy.
12
52440-KA3-013
Шланг соединительный
13
52441-MA0-003
O ring 1.9x9.8
14
52451-MA0-000
Bush, shock (lower)
15
52459-KA4-003
Seat c,spring
16
52460-KA4-010
Arm assy.,cushion
17
52462-MA0-013
Bush, damper arm
18
52463-MA0-010
Манжета
19
52470-KA4-010
Rod assy
20
52472-MA0-013
Втулка
20
52472-MA0-003
Bush,cush.conn.
21
52473-MA0-020
Манжета
22
52486-MA0-013
Collar,damper up.
23
52489-MA0-003
Bush,damper upper
24
87516-MA0-003
Наклейка
25
90128-KA4-003
Bolt, flange, 12x105
26
90129-MA0-003
Bolt,flange,10x69
27
90153-MA0-003
Bolt,flange,10x48
28
90153-965-000
Bolt (10x58)
29
90304-GA6-003
Nut, axle, 10mm
30
90306-181-761
Гайка (12mm)
31
91261-964-671
Seal,cush.arm
32
91262-MA0-015
Seal, rr.
33
91318-ME5-003
O-ring, 5.6x1.9 (arai)
33
91305-323-000
O-ring, 5.8x1.9
34
95701-060-120-8
Болт
