Cm450e rear wheel для мотоциклов Honda CM450 (1982)

Москва и регионы России

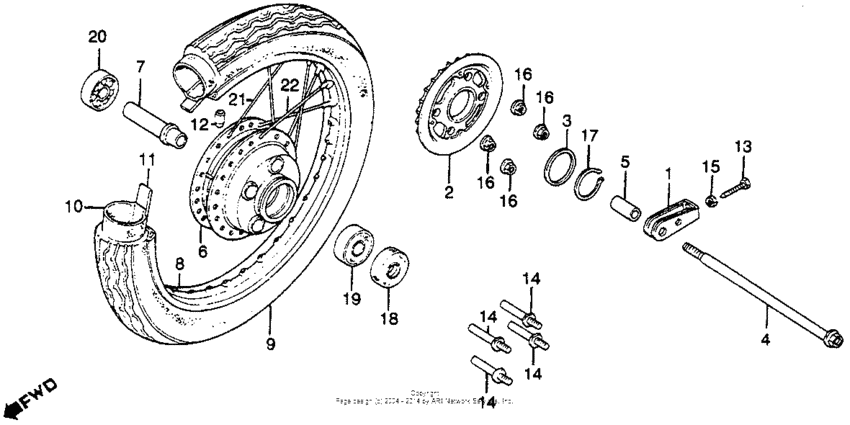

Cm450e rear wheel

Honda CM450

Cm450e rear wheel

Cm450e rear wheel

1

2

3

4

5

6

7

8

9

9

9

10

11

11

12

13

14

14

14

14

15

16

16

16

16

17

18

19

20

21

22

#

oem код

название

цена

1

Adj.,drive chain

Adj.,drive chain

2

Sprocket,driven

Sprocket,driven

3

Washer 70m/m

Washer 70m/m

4

Axle,rr.wheel

Axle,rr.wheel

5

Collar,wheel side

Collar,wheel side

6

Втулка

Втулка

7

Collar,axle dist.

Collar,axle dist.

8

Rim,rr.wheel

Rim,rr.wheel

9

Tire, rr. (4.60s-16)

Tire, rr. (4.60s-16)

9

Tire, rr. (4.60s-16)

Tire, rr. (4.60s-16)

9

Tire, rr. (4.60-16)

Tire, rr. (4.60-16)

10

Tube,tire (dun)

Tube,tire (dun)

11

Flap, fr. tire

Flap, fr. tire

11

Лента защитная (1.60-14)

Лента защитная (1.60-14)

12

Балансир

Балансир

13

Bolt,chain adjust

Bolt,chain adjust

14

Болт

Болт

15

Гайка цепи

Гайка цепи

16

Гайка (10mm)

Гайка (10mm)

17

Cir clip,ex.69m/m

Cir clip,ex.69m/m

18

Dust seal,30x55x7

Dust seal,30x55x7

19

96120-630-401-0

B/brg rad n/com

B/brg rad n/com

20

96140-630-301-0

Bearing (6303u) !!!(NA)

Bearing (6303u) !!!(NA)

21

97396-521-10P-0

Spokeset,b9x135.0

Spokeset,b9x135.0

22

97824-521-09P-0

Spokeset,b9x134.5

Spokeset,b9x134.5
