Fuel tank 80-81 для мотоциклов Honda CM200 (1980)

Москва и регионы России

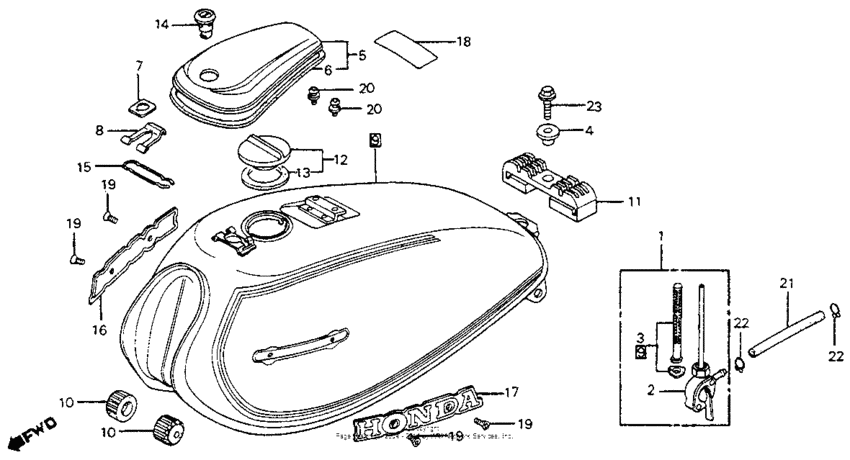

Fuel tank 80-81

Honda CM200

Fuel tank 80-81

Fuel tank 80-81

1

2

3

4

5

5

6

7

8

9

9

9

9

10

10

11

12

13

14

15

16

17

18

19

19

19

19

20

20

21

22

22

23

#

oem код

название

цена

1

Кран топливный

Кран топливный

Use up to Frame SN 2014862

2

Body comp.,cock

Body comp.,cock

Use up to Frame SN 2014862

3

Трубка

Трубка

4

Collar,tank set

Collar,tank set

5

17511-419-770ZJ

Lid *r8cs*

Lid *r8cs*

5

17511-419-770ZH

Lid *g102cu*

Lid *g102cu*

6

Packing,tank lid

Packing,tank lid

7

Spacer,tank lid

Spacer,tank lid

8

Spring, lock set

Spring, lock set

9

17540-465-671ZB

Tank, fuel *g102cu*

Tank, fuel *g102cu*

9

17540-465-671ZA

Tank, fuel *r8cs*

Tank, fuel *r8cs*

9

17540-465-670ZB

Tank set, fuel *g102cu* (candy holly green) tank set, fuel *r8cs*

Tank set, fuel *g102cu* (candy holly green) tank set, fuel *r8cs*

9

17540-465-670ZA

Tank set, fuel *r8cs* (candy presto red) tank set, fuel *g102cu*

Tank set, fuel *r8cs* (candy presto red) tank set, fuel *g102cu*

10

Резина

Резина

11

Cush,fuel tank rr

Cush,fuel tank rr

12

Cap comp.,fuel ta

Cap comp.,fuel ta

13

Packing, fuel filler cap (39x58x3)

Packing, fuel filler cap (39x58x3)

14

Lock,filr(type-1)

Lock,filr(type-1)

15

Clip, filler lock

Clip, filler lock

16

Emblem,r.tank

Emblem,r.tank

17

Emblem,l.tank

Emblem,l.tank

18

87560-375-680ZF

Mark (typew)

Mark (typew)

19

93700-030-060-G

Screw,oval,3x6

Screw,oval,3x6

20

Screw-washer, 4x6

Screw-washer, 4x6

21

95001-450-0360M

Bulk hose (4.5x3000)

Bulk hose (4.5x3000)

22

Зажим

Зажим

TUBE(B8)

23

Bolt, flange, 6x22

Bolt, flange, 6x22
