Carburetor set для мотоциклов Honda CL350 CL350 (0)

Москва и регионы России

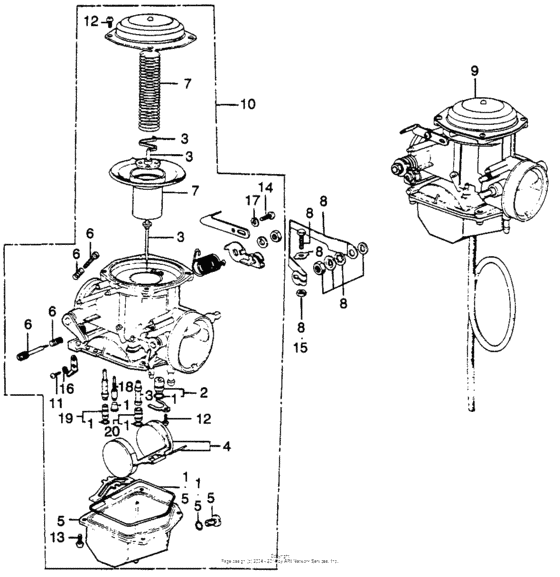

Carburetor set

Honda CL350 CL350

Carburetor set

Carburetor set

1

1

1

1

1

1

1

1

1

1

1

1

2

3

3

3

3

3

3

3

3

4

4

5

5

5

5

5

5

5

5

6

6

6

6

6

6

6

6

7

7

7

7

8

8

8

8

8

9

9

10

10

11

12

12

13

14

15

16

17

18

18

19

19

20

20

20

#

oem код

название

цена

1

Комплет прокладок

Комплет прокладок

Use from Engine SN 1065279

1

Packing set

Packing set

Use up to Engine SN 1065278

2

Valve set,float

Valve set,float

3

Needle set,jet

Needle set,jet

Use from Engine SN 1045165

3

Игла

Игла

Use up to Engine SN 1045164

4

Поплавок

Поплавок

Use from Engine SN 1065279

4

Поплавок

Поплавок

Use up to Engine SN 1065278

5

Камера

Камера

Use up to Engine SN 1065278

5

Chamber set,float

Chamber set,float

Use from Engine SN 1065279

6

Винт

Винт

Use up to Engine SN 1065278

6

Винт

Винт

Use from Engine SN 1065279

7

Valve set,throt.

Valve set,throt.

Use from Engine SN 1045165 to 1131734

7

Valve set,throt.

Valve set,throt.

Use up to Engine SN 1045164

8

Rod set a,choke

Rod set a,choke

9

Carburetor,r

Carburetor,r

Use from Engine SN 1045165 to 1065278

9

Carburetor assy., r.

Carburetor assy., r.

Use up to Engine SN 1045164

10

Carburetor,l

Carburetor,l

Use from Engine SN 1045165 to 1065278

10

Carburetor assy., l.

Carburetor assy., l.

Use up to Engine SN 1045164

11

93500-030-070-A

Screw, pan, 3x7

Screw, pan, 3x7

12

93500-040-080-A

Болт

Болт

PAN, 4X8

13

93500-040-100-A

Болт

Болт

PAN, 4X10

14

93500-050-120-A

Болт

Болт

PAN, 5X12

15

94001-050-000-S

Гайка

Гайка

HEX., 5MM

16

Шайба

Шайба

SPRING, 3MM

17

Шайба

Шайба

SPRING, 5MM

18

Jet slow #38

Jet slow #38

Use up to Engine SN 1045164

18

Jet slow #35 std

Jet slow #35 std

Use from Engine SN 1045165

19

99201-601-070-0

Jet set,prim.main

Jet set,prim.main

Use from Engine SN 1045165

19

99201-601-060-0

Jet set,prim.main

Jet set,prim.main

Use up to Engine SN 1045164

20

99202-601-115-0

Jet set,sec.main

Jet set,sec.main

Use up to Engine SN 1045164

20

99202-601-105-0

Jet set,sec.main

Jet set,sec.main

Use from Engine SN 1065279

20

99202-601-100-0

Jet set,sec.main

Jet set,sec.main

Use from Engine SN 1045165 to 1065278
