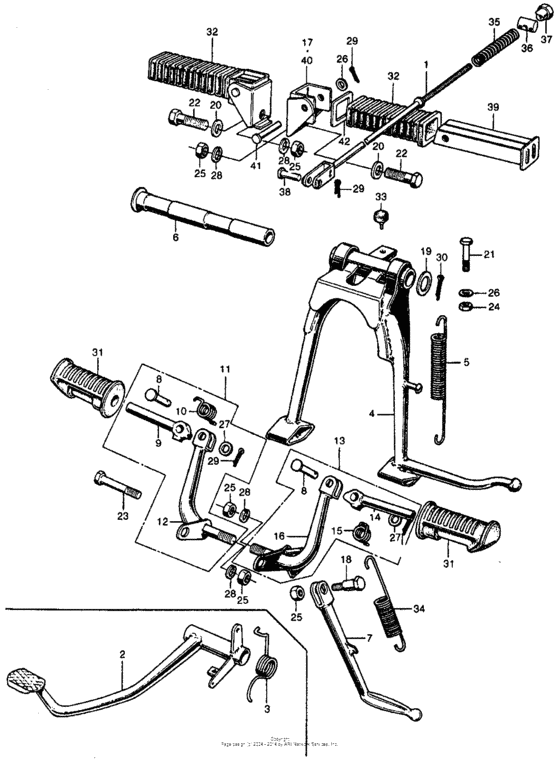

Rear brake rod + pedal + stand and step

Honda CL450 CL450

Rear brake rod + pedal + stand and step

Rear brake rod + pedal + stand and step

1

2

3

4

5

5

6

7

8

8

9

10

11

12

13

14

15

16

17

18

19

20

20

21

22

22

23

24

25

25

25

25

25

26

26

27

27

28

28

28

28

29

29

29

30

31

31

32

32

33

34

35

36

37

38

39

40

41

42

#

oem код

название

цена

1

Rod rr,brake

Rod rr,brake

Use from Frame SN 1004150

2

Pedal,rear brake

Pedal,rear brake

3

Spring,brakepedal

Spring,brakepedal

4

50500-292-000-B

Stand,main

Stand,main

5

Spring.j, stand

Spring.j, stand

Use from Frame SN 1077068

5

Spring main stand

Spring main stand

Use up to Frame SN 1077067

6

Pipe,stand pivot

Pipe,stand pivot

7

Bar,side stand

Bar,side stand

8

Палец

Палец

9

50616-283-020-B

Arm,r step

Arm,r step

10

Пружина

Пружина

11

50630-294-671-B

Step assy right

Step assy right

12

50635-294-671-B

Bar right step

Bar right step

13

50640-347-000-B

Step assy., l. *nh1*

Step assy., l. *nh1*

14

50642-283-020-B

Arm,l step

Arm,l step

15

Пружина

Пружина

16

50645-294-670-B

Bar, l. step *nh1*

Bar, l. step *nh1*

17

Bracket,l pillion

Bracket,l pillion

18

Screw,pivot

Screw,pivot

19

Washer, 19mm

Washer, 19mm

20

Washer,pillion

Washer,pillion

21

Bolt, hex., 6x40

Bolt, hex., 6x40

22

Болт

Болт

23

Болт

Болт

24

94001-062-000-S

Гайка

Гайка

HEX., 6MM

25

94001-100-000-S

Гайка

Гайка

HEX., 10MM

26

Шайба

Шайба

PLAIN, 6MM

27

Шайба

Шайба

PLAIN, 8MM

28

Шайба

Шайба

SPRING, 10MM

29

Штифт

Штифт

30

Pin, split, 2.5x30

Pin, split, 2.5x30

31

Rubber,step

Rubber,step

32

Rubber,pillon

Rubber,pillon

33

Rubber a, stand stopper

Rubber a, stand stopper

34

Spring d, side stand

Spring d, side stand

35

Пружина

Пружина

36

Соединитель

Соединитель

37

Nut b, brake rod adjusting

Nut b, brake rod adjusting

38

Pin b, brake rod joint

Pin b, brake rod joint

39

Bar,pillion

Bar,pillion

40

Bracket 2,pillion

Bracket 2,pillion

41

Pin c

Pin c

42

Washer,pillion

Washer,pillion
