Front fork k3-k4 для мотоциклов Honda CL450 CL450 (0)

Москва и регионы России

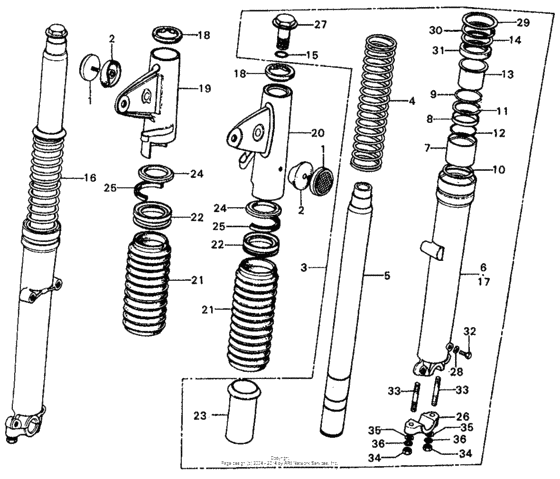

Front fork k3-k4

Honda CL450 CL450

Front fork k3-k4

Front fork k3-k4

1

1

2

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

18

19

20

21

21

22

22

23

24

24

25

25

26

27

28

29

30

31

32

33

33

34

34

35

35

36

36

#

oem код

название

цена

1

Reflexreflector

Reflexreflector

2

Base,fr reflex

Base,fr reflex

3

Вилка в сборе правая

Вилка в сборе правая

4

Spring,cushion

Spring,cushion

5

Pipe,front.fork

Pipe,front.fork

6

Case, r. fr. fork

Case, r. fr. fork

7

Piston,front fork

Piston,front fork

8

Valve, damper

Valve, damper

9

Ring, fork

Ring, fork

10

Snap,forkpiston

Snap,forkpiston

11

Кольцо

Кольцо

12

Ring, piston stop

Ring, piston stop

13

Guide,f.fork pipe

Guide,f.fork pipe

14

Ring,back up

Ring,back up

15

O-ring 11x3

O-ring 11x3

16

Cushion, l. fr.

Cushion, l. fr.

17

Case, l. fr. fork

Case, l. fr. fork

18

Cover,cushion

Cover,cushion

19

51602-294-670-Z

Cover r fr fork

Cover r fr fork

20

51606-294-670-Z

Cover l fr fork

Cover l fr fork

21

Boot,front fork

Boot,front fork

22

Cap,spring seat

Cap,spring seat

23

Seat,spring

Seat,spring

24

Cushion,forkcover

Cushion,forkcover

25

Packing,fork rib

Packing,fork rib

26

Holder,axle

Holder,axle

27

Bolt front fork

Bolt front fork

28

Прокладка перед.

Прокладка перед.

29

Washer,springseat

Washer,springseat

30

Circlip, 47mm

Circlip, 47mm

31

Oil seal 354611

Oil seal 354611

32

Bolt, hex., 6x10

Bolt, hex., 6x10

33

Болт заклепка

Болт заклепка

34

Гайка

Гайка

HEX., 8MM

35

Шайба

Шайба

PLAIN, 8MM

36

Шайба

Шайба

SPRING, 8MM
