Taillight + rear fender k3 для мотоциклов Honda CL70 CL70 (0)

Москва и регионы России

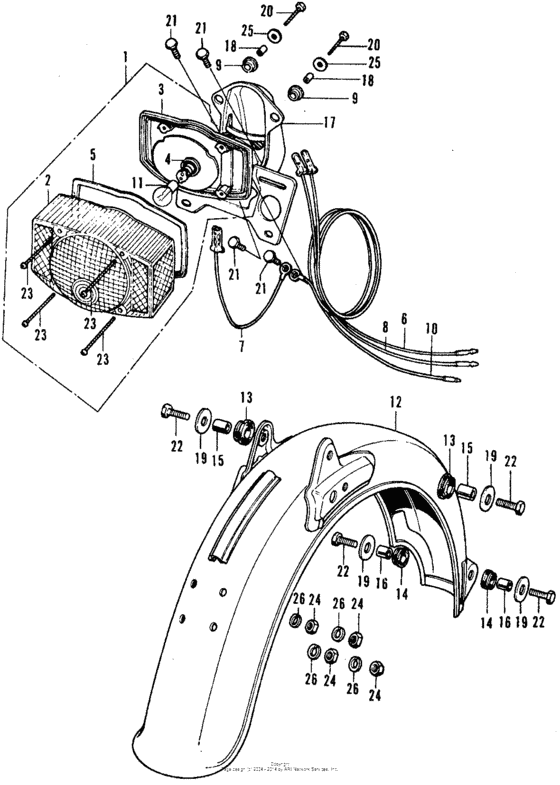

Taillight + rear fender k3

Honda CL70 CL70

Taillight + rear fender k3

Taillight + rear fender k3

1

2

3

4

5

6

7

8

9

9

10

11

12

13

13

14

14

15

15

16

16

17

18

18

19

19

19

19

20

20

21

21

21

21

22

22

22

22

22

22

22

22

23

23

23

23

24

24

24

24

25

25

26

26

26

26

#

oem код

название

цена

1

Unit,tail light

Unit,tail light

2

Lens,tail light

Lens,tail light

3

Base,tail light

Base,tail light

4

Wire, taillight

Wire, taillight

5

Packing,tail lt.

Packing,tail lt.

6

Sub-wire, taillight

Sub-wire, taillight

7

Cord tail & earth

Cord tail & earth

8

Sub-wire, taillight

Sub-wire, taillight

9

Packing,tail,ba,b

Packing,tail,ba,b

10

Cord,fender earth

Cord,fender earth

11

Bulb, tail light

Bulb, tail light

12

80100-111-971XW

Fender, rr. *mrcr2*

Fender, rr. *mrcr2*

13

Rubber a, rr. fender

Rubber a, rr. fender

14

Cussion b,fender

Cussion b,fender

15

Collar a, rr. fender

Collar a, rr. fender

16

Collar b, rr. fender

Collar b, rr. fender

17

84700-111-971-B

Bracket *nh1*

Bracket *nh1*

18

Collar no bracket

Collar no bracket

19

Шайба

Шайба

PLAIN, 6MM

20

Washer,18m/m

Washer,18m/m

21

Болт

Болт

22

Болт

Болт

HEX., 6X12

22

Болт

Болт

23

Болт

Болт

HEX., 6X22

24

93500-040-550-B

Screw,pan,4x55

Screw,pan,4x55

25

94002-060-000-S

Гайка

Гайка

HEX., 6MM

26

Шайба

Шайба

SPRING, 6MM
