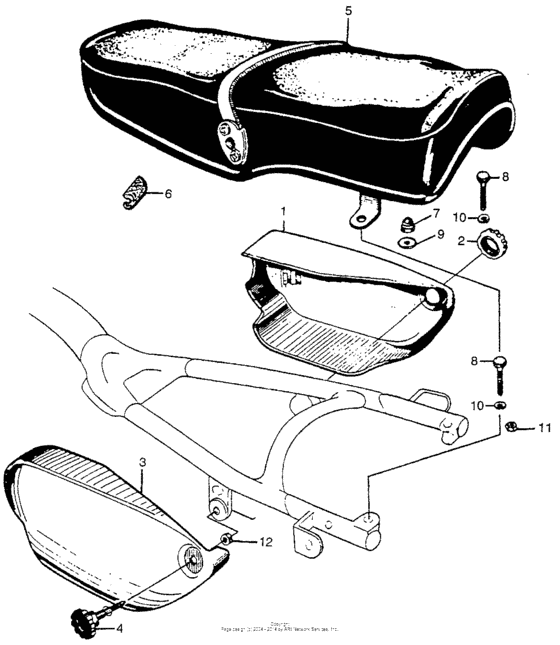

Air cleaner case + seat

Honda CL77 CL77

Air cleaner case + seat

Air cleaner case + seat

1

2

3

4

5

5

6

7

8

8

8

8

9

10

10

10

10

11

12

#

oem код

название

цена

1

17231-273-010-S

Case,cleaner

Case,cleaner

2

Ratchet,cleaner

Ratchet,cleaner

3

17331-273-000-S

Корпус воздухоочистителя

Корпус воздухоочистителя

4

Ratchet, cleaner

Ratchet, cleaner

5

77100-273-010-A

Seat, dual *nh1l*

Seat, dual *nh1l*

Use from Frame SN 1033482

5

77100-273-000-A

Сидение

Сидение

Use from Frame SN 1000001 to 1033481

6

Rubber,sadle sett

Rubber,sadle sett

Use from Frame SN 1033482

7

Rubber b. saddle

Rubber b. saddle

Use from Frame SN 1033482

8

Bolt, hex., 8x40

Bolt, hex., 8x40

8

Bolt, seat sett.

Bolt, seat sett.

Use from Frame SN 1033482

9

Washer, 8x30

Washer, 8x30

Use from Frame SN 1033482

10

Шайба

Шайба

SPRING, 8MM Use from Frame SN 1000001 to 1033481

10

Washer, sprocket setting

Washer, sprocket setting

Use from Frame SN 1033482

11

Гайка

Гайка

HEX., 8MM

12

94002-060-000-S

Гайка

Гайка

HEX., 6MM
