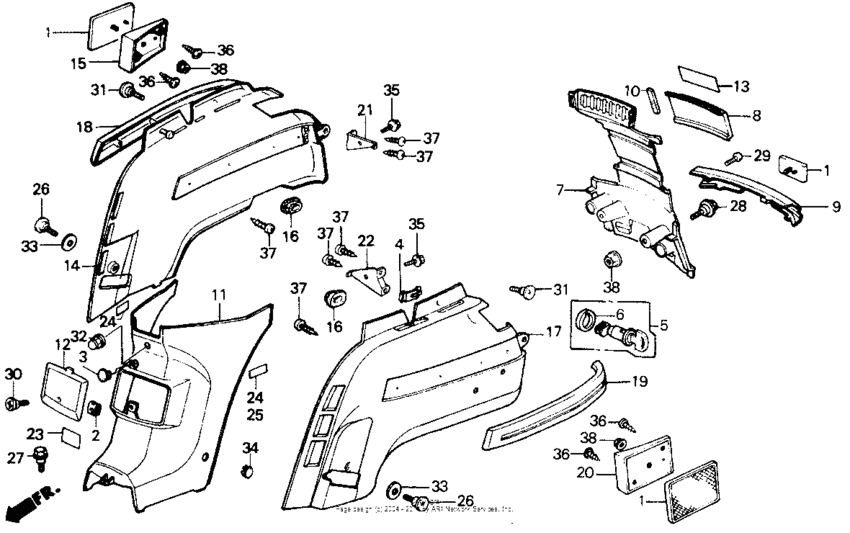

Облицовка

Honda CH250 Elite

Honda
Облицовка
#oem кодцена
1
33742-MB2-672
Отражатель
2
33754-MG9-771
Nut comp.,special
4
75581-673-000
Пружина
5
77230-KM1-000
Key assy,seat loc
6
77231-KM1-000
Collar,seat lock
7
80101-KM1-000ZE
Cover,rr*yr-129m*
7
80101-KM1-000ZD
Cover,rr *r-132c*
8
80102-KM1-770ZA
Garnish,r*type 1*
9
80103-KM1-308ZC
Protecor (type3)
9
80103-KM1-306ZA
Protector*type 1*
11
80151-KM1-000ZD
Cover body*r-141*
12
80152-KM1-000ZD
Cover,carb*r-141*
14
83500-KM1-506ZA
Cover,r bo*r132c*
14
83500-KM1-506ZB
Cover,r b*yr129m*
15
83503-KM1-750
Spacer,r.rr.reflc
16
83551-300-000
Grommet, air cleaner case
17
83600-KM1-506ZB
Cover,l b*yr129m*
17
83600-KM1-506ZA
Cover,l bo*r132c*
18
83601-KM1-305ZC
Protector*type 3*
18
83601-KM1-306ZA
Protector*type 1*
19
83602-KM1-305ZC
Protr, l. (type3)
19
83602-KM1-306ZA
Protector*type 1*
20
83603-KM1-750
Spacer,l.rr.reflc
21
83604-KM1-000
Brkt,r.bdy,cov.
22
83605-KM1-000
Brkt,l,bdy,cov
23
87505-KM1-670
Mark, tire caution
24
87511-323-670
Label, helmet holder
26
90104-KM1-000
Screw,special,5x8
27
90111-162-000
Болт
28
90111-187-000
Болт
29
90113-SB3-000
Болт
30
90142-GC8-000
Bolt, cover setting
31
90142-KG8-000
Bolt, cover setting
32
90301-693-000
Гайка
33
90401-KM1-000
Шайба
34
90656-KM1-000ZC
Plug,hole *r-141*
35
92401-06012-0A
Bolt, slotted (6x12)
36
93901-45310
Винт (5x20)
37
93903-24320
Болт
38
94050-05000
Гайка
