Rear cover 87 для мотоциклов Honda CH150 Elite (1987)

Москва и регионы России

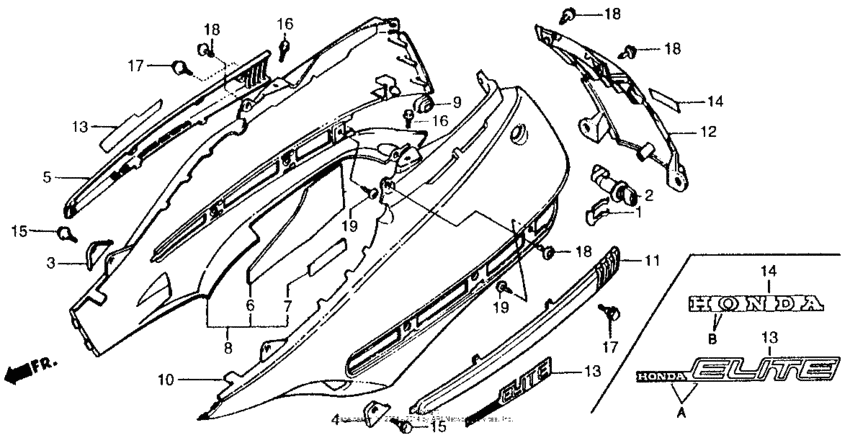

Rear cover 87

Honda CH150 Elite

Rear cover 87

Rear cover 87

1

2

3

4

5

6

7

8

8

9

10

10

11

13

13

13

13

13

13

13

13

14

14

14

14

15

15

15

15

16

16

16

17

17

18

18

18

19

19

#

oem код

название

цена

1

Пружина

Пружина

LOCK KEY SETTING

2

Key seat lock

Key seat lock

3

80155-KV7-670ZF

Cover,r s*nh158r*

Cover,r s*nh158r*

4

80156-KV7-670ZD

Cover, l. *nh154r*

Cover, l. *nh154r*

5

83501-KV7-670ZA

Moulding,r.*nh-1*

Moulding,r.*nh-1*

6

Insulator,rr.cove

Insulator,rr.cove

7

Ins,b rear cover

Ins,b rear cover

8

83520-KV7-670ZB

Cover co*nh-198p*

Cover co*nh-198p*

8

83520-KV7-670ZA

Cover com*r-153p*

Cover com*r-153p*

9

Grommet, air cleaner case

Grommet, air cleaner case

10

83600-KV7-670ZB

Cvr, l. rr. *nh198p*

Cvr, l. rr. *nh198p*

10

83600-KV7-670ZA

Cover,l.r*r-153p*

Cover,l.r*r-153p*

11

83601-KV7-670ZA

Moulding,l.*nh-1*

Moulding,l.*nh-1*

12

83750-KV7-670ZB

Cover,ta*nh-198p*

Cover,ta*nh-198p*

12

83750-KV7-670ZA

Cover, tail *r153p*

Cover, tail *r153p*

13

87552-KV7-670ZB

Маркировка эмблема

Маркировка эмблема

13

87552-KV7-670ZA

Mark,rr.co*type1*

Mark,rr.co*type1*

14

87556-KV7-670ZB

Mark,honda*type2*

Mark,honda*type2*

14

87556-KV7-670ZA

Mark,honda*type1*

Mark,honda*type1*

15

Bolt, rr. fender setting

Bolt, rr. fender setting

Use from Frame SN HK202709

15

Bolt, flange, 6x20

Bolt, flange, 6x20

Use up to Frame SN HK202708

16

Болт

Болт

17

Болт

Болт

FLANGE, 6MM

18

Клипс

Клипс

19

Винт 5х12

Винт 5х12
