Frame body

Honda CH125 Spacy

Honda

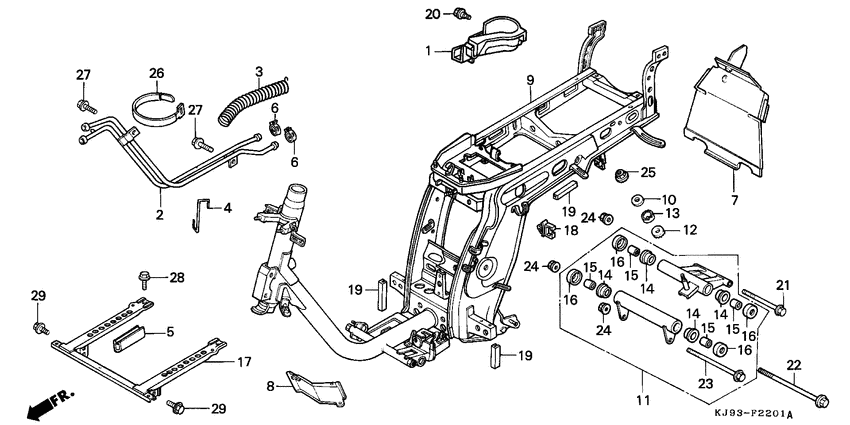

Frame body
#oem кодцена
1
16960-KN7-670
Cover,fuel cock
2
19120-KJ9-020
Pipe comp.,water
замена
19120-KN7-670
Pipe comp.,water
3
19504-KJ9-010
Wire,water hose g
4
19505-KJ9-000
Hanger,water hose
5
19506-KJ9-000
Протектор шланга
6
19509-GE2-003
Clamp, tube (d19)
7
33711-KJ9-000
Protector,bulb
8
46520-KN7-670
Guard,splash
9
50100-KJ9-641
Body comp.,frame
9
50100-KJ9-640
Body comp.,frame
10
50348-KN7-670
Washer,engine han
11
50350-KJ9-752
Hanger assy.,eng.
12
50352-GE0-000
Rubber, eng hgr stpr
13
50352-KJ9-000
Rubber, eng hgr stpr
14
50357-KM1-310
Bearing b, eng hgr
замена
50357-KM1-300
Bearing b.eng han
15
50358-KM1-000
Collar b,thrust
16
50359-KM1-000
Washer b,thrust
17
50611-KN7-830
Reinforcement,flo
18
53105-KJ9-003
Зажим
19
64209-KJ9-000
Moluding,wind
20
90003-GE0-000
Bolt, rr. fender
21
90105-KJ9-000
Bolt, flg (10x210)
22
90105-KN7-670
Bolt,m10x235.5
23
90106-KJ9-000
Bolt, flg (10x180)
24
90304-GE8-003
Nut, u, 10mm
25
90309-428-731
Nut, flange (self-lock) (m8x1.25)
замена
90309-KF0-003
Nut, flange, 8mm
26
32161-404-000
Хомут
замена
9501461100
Band a1, wire
27
95701-060-100-0
Болт
замена
95700-060-100-0
Болт
28
95701-060-120-0
Болт
замена
95700-060-120-0
Болт
29
95701-0801200
Bolt, flange, 8x12
замена
95700-080-120-0
Bolt, flange, 8x12
