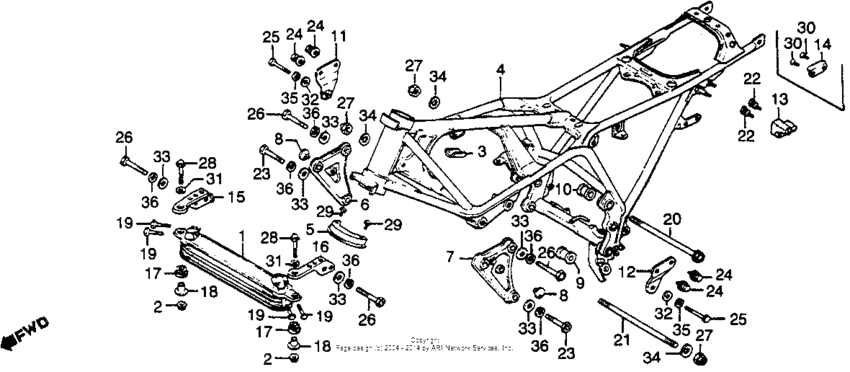

Frame + oil cooler

Honda CBX

Honda
Frame + oil cooler
#oem кодцена
1
15600-422-004
Cooler comp.,oil
1
15600-422-003
Cooler comp.,oil
2
94050-06070
ﾅｯﾄ
3
31511-107-300
Опора
4
50100-422-020ZA
Frame *nh1*
5
50341-422-000
Cover,handle stpr
6
50351-422-000
Brkt,r.eng.hanger
7
50352-422-000
Brkt,l.eng.hanger
8
50354-422-000
Plug, engine hanger
9
50356-422-000
Collar a,eng.side
10
50357-422-010
Collar b,eng.hngr
11
50361-422-000
Brkt,r.eng.hanger
12
50362-422-000
Brkt,l.eng.hanger
13
50710-086-007
Holder assy., helmet
14
50715-149-300
Cover,pan screw
15
55105-422-010
Stay,r.oil cooler
16
55106-422-010
Stay,l.oil cooler
17
55107-422-000
Rub,oil cooler mt
18
85202-371-000
Collar,radia set
19
96001-0603507
Болт
20
90102-422-000
Bolt,eng.hanger
21
90103-422-010
Bolt,rr.eng.hang.
23
90149-422-010
Болт ,10X40
24
90173-422-000
Bolt-washer,8x20
25
95301-080-450-0
Болт
26
90175-422-010
Bolt,10x42
27
90354-422-000
Nut,self lock14mm
28
92600-06025-0G
Bolt,hex.cap,6x25
29
93000-040060G
Болт
30
93500-060080A
Screw, pan, 6x8
30
93500-06008
Screw, pan, 6x8
30
93500-060-080-H
Болт
31
94101-06700
Шайба
32
94101-08000
Шайба
33
9410110000
Washer, plain, 10mm
34
9410214000
Washer, plain, 14mm
34
90600-422-000
Washer,plain,14mm
35
94111-08000
Шайба
36
94111-10000
Шайба
