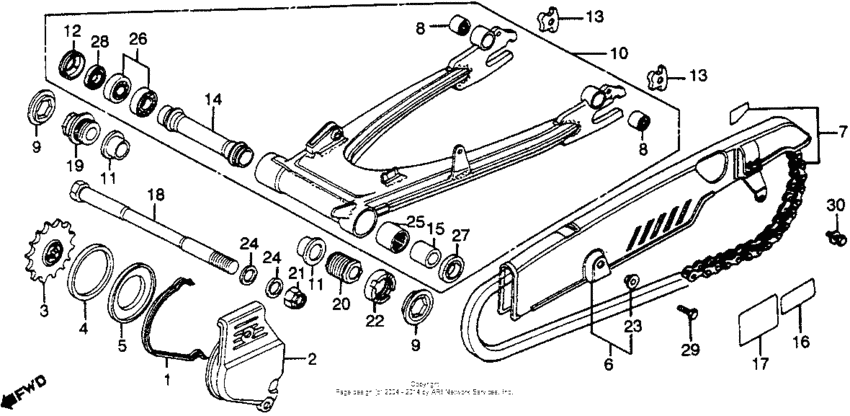

Swingarm + chain case 80

Honda CBX

Swingarm + chain case 80

Swingarm + chain case 80

1

2

3

4

5

6

7

8

8

9

9

10

11

11

12

13

13

14

15

16

17

18

19

20

21

22

23

24

24

25

26

27

28

29

30

#

oem код

название

цена

1

Gasket, l. rr. cover

Gasket, l. rr. cover

2

Крышка прав.

Крышка прав.

3

Sprocket drive

Sprocket drive

4

Ring,damper

Ring,damper

5

Guide damper ring

Guide damper ring

6

Case,drive chain

Case,drive chain

7

Drive chain set

Drive chain set

8

Втулка

Втулка

9

Cap,frame pivot

Cap,frame pivot

10

52100-469-000ZA

Swingarm, rr. *nh1*

Swingarm, rr. *nh1*

11

Collar rr fork

Collar rr fork

12

Retainer pivot.

Retainer pivot.

13

Stopper,chain adj

Stopper,chain adj

14

Collar rr fork c

Collar rr fork c

15

Collar b rr fork

Collar b rr fork

16

Mark,tire caution

Mark,tire caution

17

Mark caution

Mark caution

18

Bolt,rr,pivot

Bolt,rr,pivot

19

Piece r rr fork

Piece r rr fork

20

Piece l rr fork

Piece l rr fork

21

Nut,self lock16mm

Nut,self lock16mm

22

Nut, rr.

Nut, rr.

23

Washer, 6x20

Washer, 6x20

24

Шайба

Шайба

25

Подшипник игольчатый

Подшипник игольчатый

26

B/brg n/rad n/com

B/brg n/rad n/com

27

Dust seal,24x38x8

Dust seal,24x38x8

28

Oilseal,24x34x5.5

Oilseal,24x34x5.5

29

Болт

Болт

30

93401-060-100-7

Bolt-washer,6x10

Bolt-washer,6x10

замена

93411-060-100-7

Bolt-washer (6x10)

Bolt-washer (6x10)
