Генератор для мотоциклов Honda CBX (1980)

Москва и регионы России

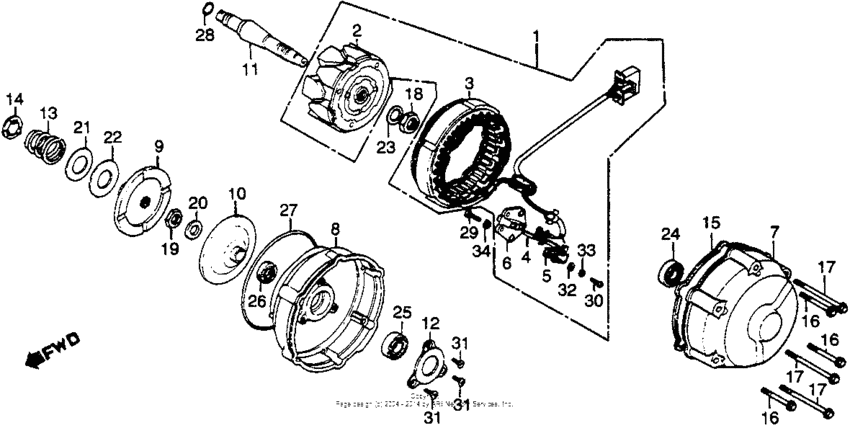

Генератор

Honda CBX

Генератор

Генератор

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

16

16

17

17

17

18

19

20

21

21

22

23

24

25

26

27

28

29

30

31

31

31

32

33

34

#

oem код

название

цена

1

Ac,gen assy

Ac,gen assy

2

Rotor comp

Rotor comp

3

Stator comp

Stator comp

4

Brush comp.a

Brush comp.a

5

Brush comp.b

Brush comp.b

6

Base,brush

Base,brush

7

Cover a,a.c.gen.

Cover a,a.c.gen.

8

Cover b,a.c.g.

Cover b,a.c.g.

9

Plate a,coupling

Plate a,coupling

10

Plate b,a.c.gen.

Plate b,a.c.gen.

11

Shaft,a.c.gen.

Shaft,a.c.gen.

12

Plate,bearing set

Plate,bearing set

13

Spg.,a.c.g.cprg

Spg.,a.c.g.cprg

14

Seat,cplg.spring

Seat,cplg.spring

15

Прокладка

Прокладка

Use up to Engine SN 2003836

16

96000-060-650-2

Bolt,flange,6x65

Bolt,flange,6x65

17

96000-060-900-2

Bolt,flange,6x90

Bolt,flange,6x90

18

Nut,hex 16mm

Nut,hex 16mm

19

Nut a,lock,14mm

Nut a,lock,14mm

20

Washer,rotor set

Washer,rotor set

21

Seat,a.c.gen.spg.

Seat,a.c.gen.spg.

Use from Engine SN 2004660

21

Washer,thrust,28

Washer,thrust,28

Use up to Engine SN 2004659

22

Plate,special

Plate,special

23

Washer,front fork

Washer,front fork

24

B/brg rad n/com

B/brg rad n/com

25

B/brg rad n/com

B/brg rad n/com

26

Сальник

Сальник

22X35X7 (ARAI)

27

Gasket,acg.case

Gasket,acg.case

28

Прокладка

Прокладка

12.5X2.2MM

29

Болт

Болт

HEX., 6X16

30

93500-040-120-H

Болт

Болт

PAN, 4X12

31

93600-060-160-A

Болт

Болт

FLAT, 6X16

32

Шайба

Шайба

PLAIN, 4MM

33

Шайба

Шайба

SPRING, 4MM

34

Шайба

Шайба

SPRING, 6MM
