Frame body

Honda CBR600F Smokin' Joe's Edition

Honda

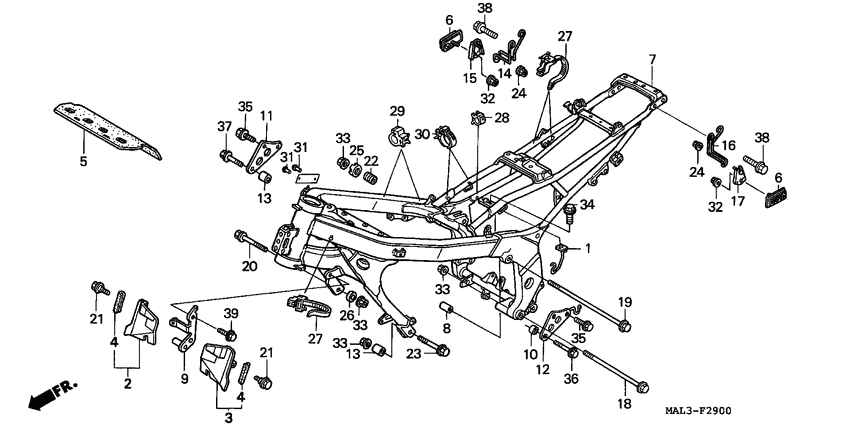

Frame body
#oem кодцена
1
17441-MAL-E00
Stay, idle adjust
2
19033-MAL-600
Plate, r. (inner)
3
19034-MAL-600
Plate, l. (inner)
4
19035-MAL-600
Mldg, plate (inner)
5
19126-MAL-600
Теплоизолятор
6
33741-MS6-921
Reflector, reflex (stanley)
7
50100-MAL-A20ZA
Frame *nh146m*
8
50185-MV9-000
Collar, eng hgr
9
50195-MAL-600
Stay, l
10
50353-MS9-750
Colr, r. fr. eng hgr
11
50501-MV9-000
Plate, eng hgr ctr
12
50502-MAL-600
Plate, l
13
50505-MV9-000
Collar, eng hgr
14
84110-MV9-930
Hook, r. rope
15
84110-MV9-970
Stay, r. reflector
16
84120-MV9-930
Hook, l. rope
17
84120-MV9-970
Stay, l. reflector
18
90101-KE8-000
Bolt, flg (10x260)
19
90104-MV9-000
Bolt, engine hanger
20
90107-ML0-700
Болт
21
90112-GC6-000
Bolt, flange, 6mm
22
90116-KAF-000
Манжета
23
90153-MT3-000
Болт
24
90301-MG3-000
Гайка м6
25
90341-KV3-700
Nut, lock (20mm)
26
90401-MV9-000
Шайба
27
90690-GHB-601
Clip, harness band (15)
28
90690-GHB-631
Clip, cable, 8mm
29
90690-GHB-671
Clip, cable, 25mm
30
90690-GHB-681
Clip, cable (30mm)
32
94050-06000
Гайка
33
94050-10000
Гайка
34
95701-060-100-8
Болт
35
95701-0801600
Bolt, flange, 8x16
36
95701-1004000
Bolt, flange, 10x40
37
95701-100-500-0
Болт
38
95701-0801600
Bolt, flange, 8x16
замена
95801-0801600
Болт
39
96001-060-100-0
Болт
