Frame ('05-)

Honda CBR600RR

Honda

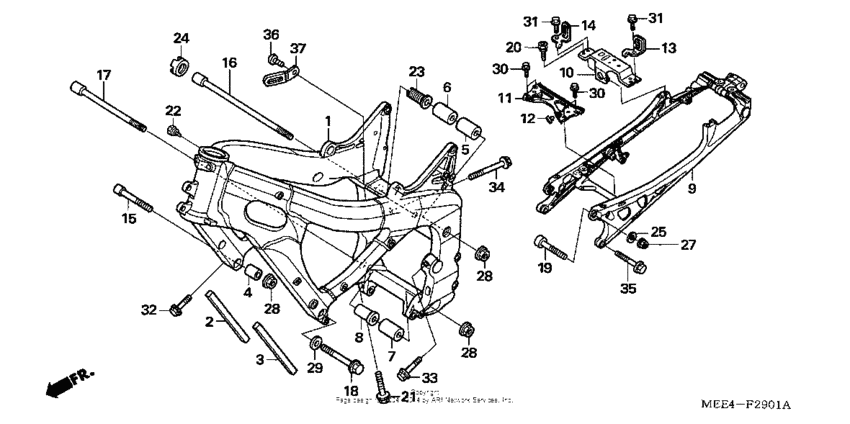

Frame ('05-)
#oem кодцена
1
50100-MEE-L00ZA
Frame *nh461m*
2
50115-MEE-300
Mat, r. eng hgr
3
50116-MEE-300
Мат
4
50191-MEE-000
Кольцо
5
50192-MEE-000
Collar b, eng hgr
6
50192-MEE-000
Collar b, eng hgr
7
50193-MEE-000
Втулка
8
50194-MEE-D00
Collar d, eng hgr
9
50200-MEE-D00
Rail assy., seat
10
50204-MEE-D00
Plate, center cross
11
50214-MEE-D00
Plate, fr. cross
12
50352-MEE-D00
Rubber, tank stopper
13
77106-MEE-D00
Guide, l. hook
14
77312-MEE-D00
Guide, r. hook
15
90101-MEE-000
Bolt, socket (12x61)
16
90102-MEE-000
Bolt (12x301)
17
90103-MEE-000
Bolt (12x262)
18
90104-MEE-000
Болт
19
90109-MEE-010
Bolt (10x37)
20
90115-MJ1-830
Болт м8
21
90117-MEE-000
Bolt, socket (8x40)
22
90119-MEE-000
Болт (6мм)
23
90152-MCF-000
Bolt (20x48.5)
24
90201-MW0-000
Nut, lock (20mm)
25
90401-430-000
Washer, 10.2mm
27
94050-10000
Гайка
28
9405012000
Nut, flange, 12mm
29
94102-12000
Шайба
30
96300-0601400
Болт
31
96300-0801800
Болт
32
96400-0803507
Болт
33
96400-0804507
Болт
34
96400-0808507
Bolt (8x85)
35
96400-1003500
Болт
36
90130-MEE-000
Bolt, socket (6x13)
37
90601-KJ9-000
Clip (4x50)
