Seat/rear cowl для мотоциклов Honda CBF250 (2006)

Москва и регионы России

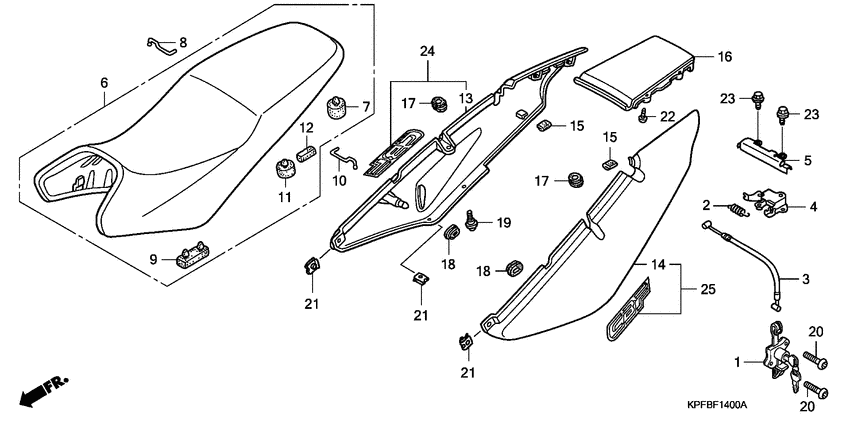

Seat/rear cowl

Honda CBF250

Seat/rear cowl

Seat/rear cowl

1

2

3

4

5

6

7

8

9

10

11

12

15

15

16

16

16

16

17

17

18

18

19

20

20

21

21

21

22

23

23

24

24

24

24

25

25

25

25

#

oem код

название

цена

1

Замок

Замок

2

Spring, seat lock

Spring, seat lock

3

Провод

Провод

SEAT LOCK

4

Bracket comp.

Bracket comp.

SEAT LOCK

5

Крышка

Крышка

SEAT LOCK

6

Seat assy.

Seat assy.

DOUBLE

7

Затычка

Затычка

SEAT SETTING

8

Hook a

Hook a

ROPE

9

Rubber b, seat setting

Rubber b, seat setting

10

Hook b

Hook b

ROPE

11

Rubber, seat setting

Rubber, seat setting

12

Подушка

Подушка

SEAT

15

Опора

Опора

RR. COWL

16

77235-KPF-960ZE

Cowl set

Cowl set

RR. CENTER (WL) *PB350C*

16

77235-KPF-960ZD

Cowl set

Cowl set

RR. CENTER (WL) *NH196*

16

77235-KPF-960ZB

Cowl set

Cowl set

RR. CENTER (WL) *NH411M*

16

77235-KPF-960ZA

Cowl set

Cowl set

RR. CENTER (WL) *NH1*

17

Grommet b, steering

Grommet b, steering

18

Grommet, air cleaner case

Grommet, air cleaner case

19

Screw, headlight setting

Screw, headlight setting

20

Болт

Болт

ONE-WAY, 6X20

21

Nut, spring, 5mm

Nut, spring, 5mm

22

Болт

Болт

TAPPING, 4X12

23

Болт

Болт

FLANGE, 6X12

24

77210-KPF-790ZD

Cowl set

Cowl set

R. RR. SIDE (WL) *TYPE4*

24

77210-KPF-790ZC

Cowl set

Cowl set

R. RR. SIDE (WL) *TYPE3*

24

77210-KPF-790ZB

Cowl set

Cowl set

R. RR. SIDE (WL) *TYPE2*

24

77210-KPF-790ZA

Cowl set

Cowl set

R. RR. SIDE (WL) *TYPE1*

25

77220-KPF-790ZD

Cowl set

Cowl set

L. RR. SIDE (WL) *TYPE4*

25

77220-KPF-790ZC

Cowl set

Cowl set

L. RR. SIDE (WL) *TYPE3*

25

77220-KPF-790ZB

Cowl set

Cowl set

L. RR. SIDE (WL) *TYPE2*

25

77220-KPF-790ZA

Cowl set

Cowl set

L. RR. SIDE (WL) *TYPE1*
