Oil pump + filter + right crankcase cover для мотоциклов Honda CB92 (0)

Москва и регионы России

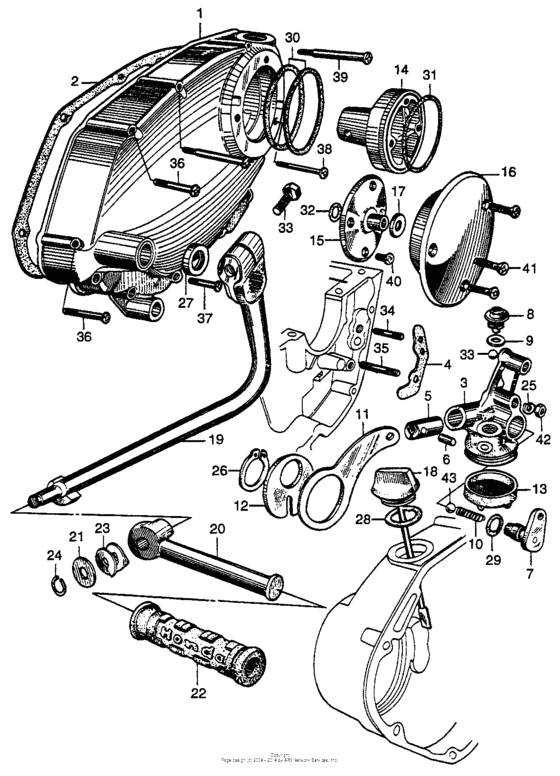

Oil pump + filter + right crankcase cover

Honda CB92

Oil pump + filter + right crankcase cover

Oil pump + filter + right crankcase cover

1

2

3

3

4

5

5

6

6

7

8

9

10

11

12

13

13

14

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

33

34

35

36

36

37

38

39

40

41

42

43

#

oem код

название

цена

1

Cover, crankcase

Cover, crankcase

2

Прокладка

Прокладка

3

Body, pump

Body, pump

Use from Engine SN 1100001

3

Body, oil pump

Body, oil pump

Use from Engine SN 910001 to 1100000

4

Прокладка

Прокладка

5

Plunger, pump

Plunger, pump

Use from Engine SN 010077

5

Plunger, pump

Plunger, pump

Use from Engine SN 910001 to 0100076

6

Pin, pump plunger

Pin, pump plunger

Use from Engine SN 010077

6

Pin, pump plunger

Pin, pump plunger

Use from Engine SN 910001 to 0100076

7

Guide,out.valve

Guide,out.valve

8

Болт

Болт

Use from Engine SN 910001 to 010076

9

Прокладка

Прокладка

10

Пружина

Пружина

11

Rod, pump

Rod, pump

Use from Engine SN 910001 to 011151

12

Шайба

Шайба

13

Screen, filter

Screen, filter

Use from Engine SN 010077

13

Фильтр насоса

Фильтр насоса

Use from Engine SN 910001 to 010076

14

Roter, oil filter

Roter, oil filter

Use from Engine SN 210001

14

Roter, oil filter

Roter, oil filter

Use from Engine SN 910001 to 210000

15

Cap, oil filter

Cap, oil filter

16

Cover,oil filter

Cover,oil filter

17

Шайба

Шайба

Use from Engine SN 010941

18

Указатель уровня масла

Указатель уровня масла

19

Рычак кик-стартера

Рычак кик-стартера

20

Pedal, starter

Pedal, starter

21

Шайба

Шайба

22

Затычка

Затычка

23

Пружина

Пружина

24

Зажим

Зажим

25

Washer, pump lock

Washer, pump lock

26

Circlip (26mm)

Circlip (26mm)

27

Oil seal, 14x24x8

Oil seal, 14x24x8

28

O-ring 27.5mm

O-ring 27.5mm

29

O ring, 10.9x2

O ring, 10.9x2

30

O-ring, 64x2

O-ring, 64x2

31

0-ring,50.5x1.5

0-ring,50.5x1.5

32

O ring, 13.7x1.5

O ring, 13.7x1.5

33

Bolt, hex., 8x25

Bolt, hex., 8x25

34

Stud, 6x42

Stud, 6x42

35

Stud, 6x46

Stud, 6x46

36

Screw, pan (6x40)

Screw, pan (6x40)

37

93500-060-500-A

Screw,pan,6x50

Screw,pan,6x50

38

93500-060-600-A

Screw,pan,6x60

Screw,pan,6x60

39

93500-060-650-A

Screw, pan (6x65)

Screw, pan (6x65)

40

Screw cross 4x16

Screw cross 4x16

41

93700-060-180-2

Screw,oval,6x18

Screw,oval,6x18

42

94001-062-000-S

Гайка

Гайка

HEX., 6MM

43

Шарик

Шарик
