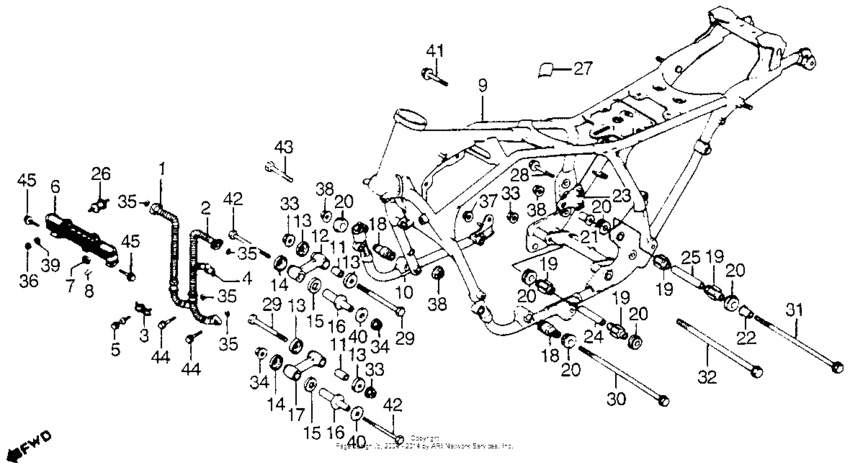

Frame + oil cooler

Honda CB900

Honda
Frame + oil cooler
#oem кодцена
1
15510-438-000
Hose comp.,r.oil
2
15515-438-000
Hose comp.,l.oil
3
15526-438-000
Holder a,oil hose
4
15527-438-000
Holder b,oil hose
5
15529-438-000
Bolt,oil hose
6
15600-438-003
Cooler comp.,oil
7
15617-438-000
Rubber,oil cooler
8
15618-438-000
Pin,oil cooler
9
50100-438-670ZA
Frame *nh1*
10
50122-438-670ZB
Pipe,joint*nh-1*
11
50184-438-670
Collar,rod pivot
12
50185-438-670
Rod r.tension
13
50186-438-670
Washer,rod pivot
14
50188-438-670
Washer b, pivot
15
50189-438-670
Washer c.pivot
16
50191-438-670
Collar b.pivot
17
50195-438-670
Rod,l.tension
18
50201-438-670
Rubber a,mount
19
50201-461-000
Rubber a,mount
20
50203-461-000
Rubber c,mount
21
50327-438-670
Collar,r.engine
22
50337-438-670
Collar,l.engine
23
50356-438-670
Brkt,rr.eng hange
24
50362-438-670
Collar b,distance
25
50363-438-670
Collar c,distance
26
85201-438-000
Опора
27
87506-438-670
Mark,bat.caution
28
90156-KA6-770
Болт
29
90017-438-670
Bolt,hex,10x80
30
90152-438-670
Bolt (10x352)
31
90156-425-830
Bolt,eng.10x284
32
90157-438-670
Bolt,eng.10x406
33
90304-GA6-003
Nut, axle, 10mm
34
90309-428-731
Nut, flange (self-lock) (m8x1.25)
35
91301-MY9-003
O-ring,15x2.5
36
94021-060-700-S
Гайка
37
94050-08000
Гайка
38
94050-10000
Гайка
39
94103-06700
Шайба
40
9410308000
Washer, plain, 8mm
41
95701-0802200
Bolt, flange, 8x22
42
95800-080-700-0
Bolt,flange,8x70
43
95801-1005000
Болт
44
96001-060-250-0
Болт
44
96000-0602500
Bolt, flange, 6x25
45
96001-0603507
Болт
