Swingarm + chain case для мотоциклов Honda CB750 (0)

Москва и регионы России

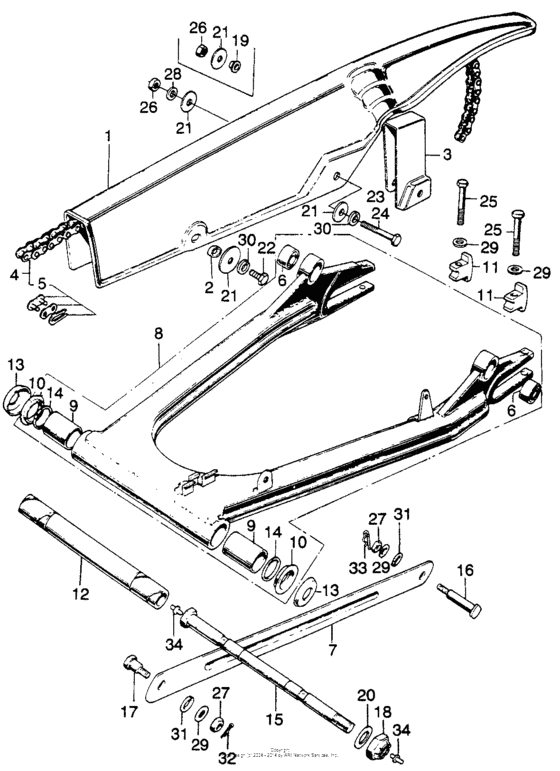

Swingarm + chain case

Honda CB750

Swingarm + chain case

Swingarm + chain case

1

4

5

6

6

7

8

9

9

10

10

11

11

12

13

13

14

14

15

16

16

17

18

20

23

25

25

27

27

28

29

29

29

29

30

30

31

31

32

32

32

33

34

#

oem код

название

цена

1

40510-341-010-B

Case,drive chain

Case,drive chain

4

Chain,drive

Chain,drive

Use up to Frame SN 2031362

5

Joint,drive chain

Joint,drive chain

Use up to Frame SN 2031362

6

Втулка

Втулка

7

Arm,brake stopper

Arm,brake stopper

8

52100-341-000-B

Rear fork

Rear fork

9

Bush,fork.pivot

Bush,fork.pivot

10

Thrust bush

Thrust bush

11

Stopper chain

Stopper chain

12

Collar rr fork

Collar rr fork

13

Cap, fork

Cap, fork

14

Ring rr fork

Ring rr fork

15

Bolt,fork pivot

Bolt,fork pivot

16

Bolt,rear brake

Bolt,rear brake

Use from Frame SN 2065310

16

Bolt, panel stop.

Bolt, panel stop.

Use up to Frame SN 2065309

17

Bolt, rr

Bolt, rr

18

Nut, self lock

Nut, self lock

20

Washer, rr.

Washer, rr.

23

Bolt, hex., 6x14

Bolt, hex., 6x14

25

Bolt, hex., 8x40

Bolt, hex., 8x40

27

94001-080-000-S

Гайка

Гайка

HEX., 8MM

28

Шайба

Шайба

PLAIN, 6MM

29

Шайба

Шайба

PLAIN, 8MM Use up to Frame SN 2065309

30

Шайба

Шайба

SPRING, 6MM

31

Шайба

Шайба

SPRING, 10MM

32

Штифт

Штифт

32

Штифт

Штифт

SPLIT, 2.0X22

32

Штифт

Штифт

SPLIT, 2.0X22

33

Штифт

Штифт

LOCK, 8MM

34

Nipple,grease4.5

Nipple,grease4.5
