Final driven shaft + drive sprocket для мотоциклов Honda CB750 (0)

Москва и регионы России

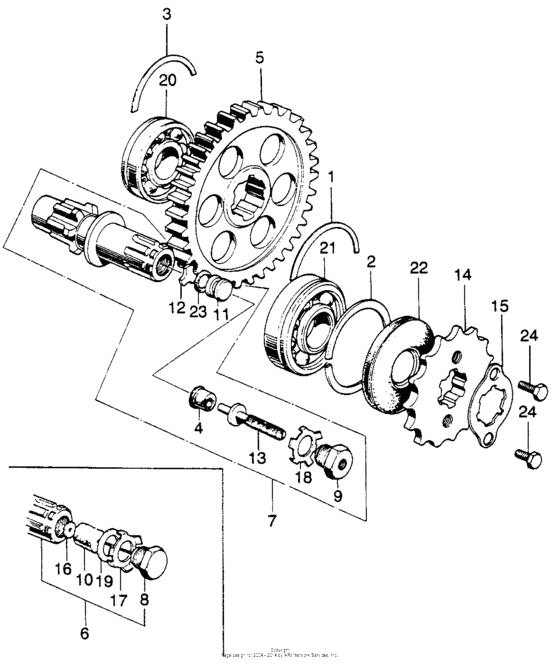

Final driven shaft + drive sprocket

Honda CB750

2

4

5

7

9

11

12

13

14

15

19

20

21

22

23

24

#

oem код

название

цена

2

13491-300-000

Ring,set.66.5mm

4

23314-319-300

Orifice,rubber

5

23511-300-020

Шестерня

7

23520-300-030

Shaft,final

Use from Engine SN 2200001

7

23520-300-020

Shaft,finaldriven

Use up to Engine SN 2200000

9

23523-300-310

Plug,final.shaft

11

23524-300-310

Фильтр масляный

12

23525-300-000

Plate,stopper

13

23526-300-300

Screw,adjusting

14

23801-300-620

Sprocket,drive

15

23811-292-000

Plate,fixing

19

90433-300-010

Washer,lock.14mm

20

96100-6205010

Bearing, radial ball, 6205

20

96100-6205000

Bearing, radial ball, 6205

21

91012-MG7-003

Bearing (5206)

Use from Engine SN 2200001

21

91007-300-008

B/brg rad n/com

Use up to Engine SN 2200000

22

91205-300-005

Сальник

23

91312-415-000

O-ring,6.5x3.1

24

92101-06016-0A

Болт

HEX., 6X16
