Rear wheel 78 для мотоциклов Honda CB750 (1978)

Москва и регионы России

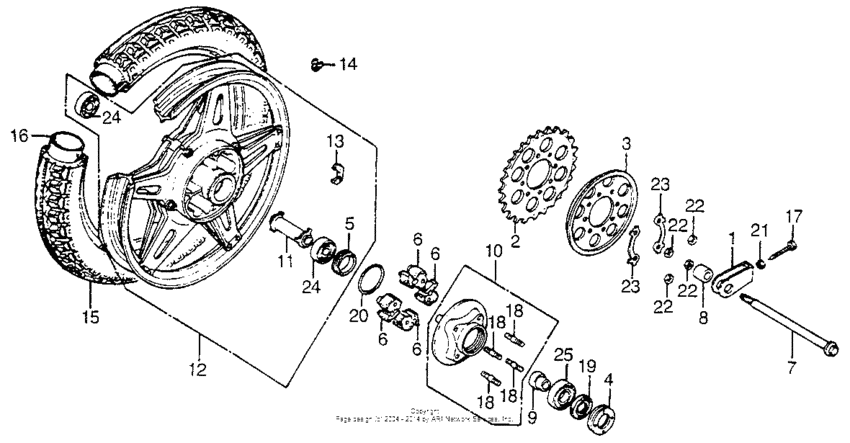

Rear wheel 78

Honda CB750

Rear wheel 78

Rear wheel 78

1

2

3

4

5

6

6

6

6

7

8

9

10

11

12

13

14

14

15

15

16

16

17

18

18

18

18

19

20

21

22

22

22

22

23

23

24

24

25

#

oem код

название

цена

1

Adjuster,chain

Adjuster,chain

2

Sprocket,driven

Sprocket,driven

3

Plate,sprkt.side

Plate,sprkt.side

4

Обойма подшипника

Обойма подшипника

5

Retainer rr wheel

Retainer rr wheel

6

Damper,rr.wheel

Damper,rr.wheel

7

Axle,rr.wheel

Axle,rr.wheel

8

Collar,wheel side

Collar,wheel side

замена

Coller,rr.wheel

Coller,rr.wheel

9

Гильза

Гильза

10

Flange,driven

Flange,driven

11

Collar, rr. distance

Collar, rr. distance

12

Диск колеса задний

Диск колеса задний

13

Mark,rr.spoke pl.

Mark,rr.spoke pl.

14

Ballance (30g)

Ballance (30g)

14

Балансир

Балансир

15

Tire,rr.wheel

Tire,rr.wheel

15

Tire, rr. (4.50h-17)

Tire, rr. (4.50h-17)

16

Tube, tire (120/90-17) (bs)

Tube, tire (120/90-17) (bs)

16

Tube, tire (5.10-17)

Tube, tire (5.10-17)

17

Bolt,chain adjust

Bolt,chain adjust

18

Bolt,stud,12x54

Bolt,stud,12x54

19

Oil seal, 34559

Oil seal, 34559

20

D ring,

D ring,

21

94002-080-000-S

Гайка

Гайка

HEX., 8MM

22

Nut, hex., 12mm

Nut, hex., 12mm

23

Washer,a7,tongued

Washer,a7,tongued

24

Bearing (6304u)

Bearing (6304u)

25

96140-630-501-0

B/brg rad n/com

B/brg rad n/com
