Top clutch + countershaft для мотоциклов Honda CB750 (1976)

Москва и регионы России

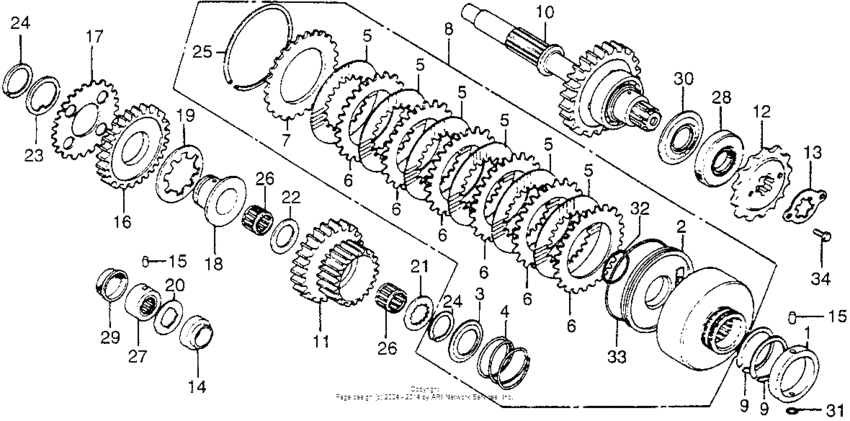

Top clutch + countershaft

Honda CB750

Top clutch + countershaft

Top clutch + countershaft

1

2

3

4

5

5

5

5

5

5

5

6

6

6

6

6

7

7

7

7

7

7

7

7

7

7

7

7

8

9

9

10

11

12

13

14

15

15

16

17

18

19

20

21

22

23

24

24

25

25

26

27

28

29

30

31

32

33

34

34

#

oem код

название

цена

1

Guide, seal ring

Guide, seal ring

2

Piston comp,clutc

Piston comp,clutc

3

Пружина

Пружина

4

Пружина

Пружина

5

Диск фрикционный

Диск фрикционный

6

Plate clutch

Plate clutch

7

Plate clutch end

Plate clutch end

7

Plate clutch end

Plate clutch end

7

Plate clutch end

Plate clutch end

7

Plate clutch end

Plate clutch end

7

Plate clutch end

Plate clutch end

7

Plate clutch end

Plate clutch end

8

Clutch assy., top

Clutch assy., top

9

Ring (52mm)

Ring (52mm)

10

Counter shaft

Counter shaft

11

Шестерня

Шестерня

12

Sprocket,drive

Sprocket,drive

13

Plate,fixing

Plate,fixing

14

Collar (26x38x13)

Collar (26x38x13)

15

Штифт

Штифт

16

Gear, starter idle

Gear, starter idle

17

Gear,starter idle

Gear,starter idle

18

Манжета

Манжета

19

Spring, starter idle

Spring, starter idle

20

Шайба

Шайба

21

Washer, spline

Washer, spline

22

Шайба

Шайба

23

Шайба

Шайба

24

Circlip ex36

Circlip ex36

25

Circlip,in

Circlip,in

26

Bearing, needle, 26x30x17 (toyo)

Bearing, needle, 26x30x17 (toyo)

27

Подшипник игольчатый

Подшипник игольчатый

замена

Bearing,needle

Bearing,needle

28

Oil seal,34x62x13

Oil seal,34x62x13

29

Cap,seal,34x7

Cap,seal,34x7

30

Oil seal,34x66

Oil seal,34x66

31

O-ring,4.9x2.5

O-ring,4.9x2.5

32

Прокладка

Прокладка

32X1.9

33

O ring 88x2.2

O ring 88x2.2

34

Болт

Болт

HEX., 6X12

34

Болт

Болт
