Трансмиссия для мотоциклов Honda CB750 (1976)

Москва и регионы России

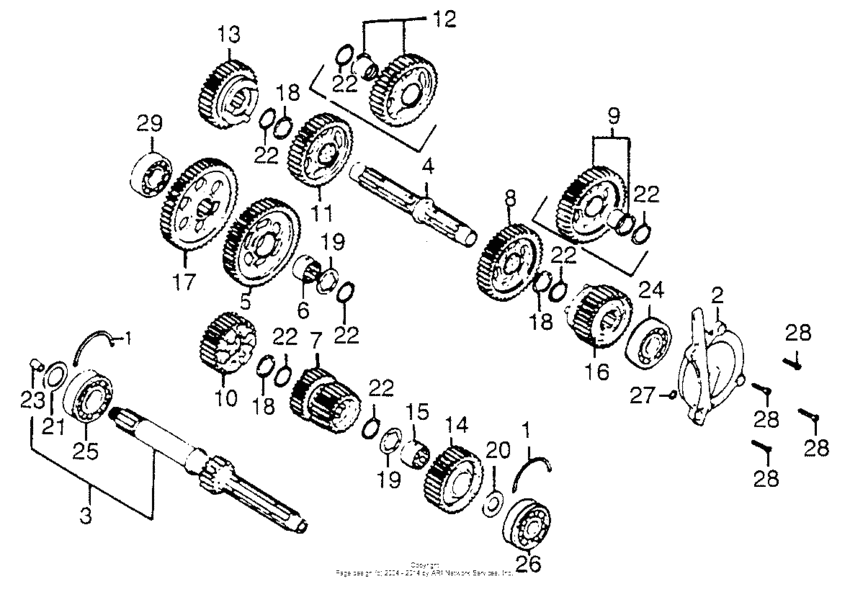

Трансмиссия

Honda CB750

Трансмиссия

Трансмиссия

1

1

2

3

4

4

5

6

7

8

9

10

11

11

12

13

14

15

16

17

18

18

18

18

18

18

19

19

19

19

20

21

22

22

22

22

22

22

22

23

24

25

26

27

28

28

28

28

29

#

oem код

название

цена

1

Ring a set

Ring a set

2

Holder,shaft

Holder,shaft

3

Mainshaft,trns.

Mainshaft,trns.

Use up to Engine SN 2432032

4

Промежуточный вал

Промежуточный вал

Use from Engine SN 2432033

4

Shft,counter

Shft,counter

Use up to Engine SN 2432032

5

Gear,low

Gear,low

6

Bush,spline 29mm

Bush,spline 29mm

7

Gear,m.2.3

Gear,m.2.3

Use up to Engine SN 2432032

8

Gear,ct/shaft 2nd

Gear,ct/shaft 2nd

Use up to Engine SN 2432032

9

Gear,ct/shaft 2nd

Gear,ct/shaft 2nd

Use from Engine SN 2432033 to 2476101

10

Gear,main fourth

Gear,main fourth

11

Gear,ct/shaft 3rd

Gear,ct/shaft 3rd

Use up to Engine SN 2432032

11

Gear,third

Gear,third

Use up to Engine SN 2432032

12

Gear,ct/shaft 3rd

Gear,ct/shaft 3rd

Use up to Engine SN 2476101

13

Gear,fourth

Gear,fourth

14

Gear,main top

Gear,main top

15

Bush,spline 28mm

Bush,spline 28mm

16

Gear,counter top

Gear,counter top

17

Gear,final drive

Gear,final drive

18

Шайба упорная

Шайба упорная

Use up to Engine SN 2432032

18

Wash,thrust,25mm

Wash,thrust,25mm

Use from Engine SN 2432033

19

Шайба

Шайба

Use from Engine SN 2432033

19

Шайба упорная

Шайба упорная

Use up to Engine SN 2432032

20

Washer, thrust, 20mm

Washer, thrust, 20mm

21

Washer a (25mm)

Washer a (25mm)

22

Стопорное кольцо (25mm)

Стопорное кольцо (25mm)

23

Plug,special10x10

Plug,special10x10

24

Bearing, radial ball, 6304

Bearing, radial ball, 6304

25

B/brg rad n/com

B/brg rad n/com

26

B/brg rad n/com

B/brg rad n/com

27

O-ring,4.9x2.5

O-ring,4.9x2.5

28

93600-060-200-A

Болт

Болт

FLAT, 6X20

29

Bearing, radial ball, 6204

Bearing, radial ball, 6204
