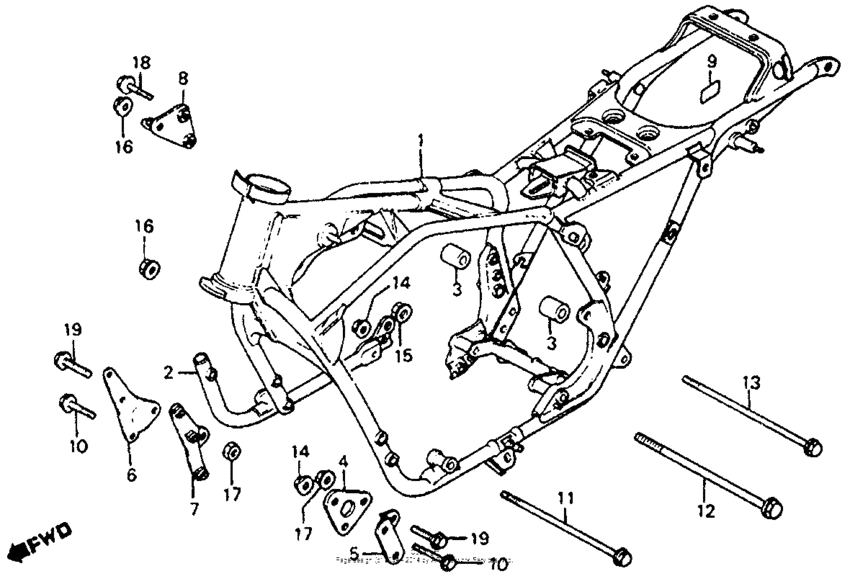

Рама для мотоциклов Honda CB750SC Nighthawk (1982)

Москва и регионы России

Рама

Honda CB750SC Nighthawk

Рама

Рама

1

2

2

3

3

4

4

5

5

6

6

7

7

8

9

10

10

11

12

13

14

14

15

16

16

17

17

18

19

19

#

oem код

название

цена

1

50100-ME1-670ZB

Frame *b100bu*

Frame *b100bu*

2

50122-ME1-670ZB

Pipe, joint *b100mu*

Pipe, joint *b100mu*

2

50122-ME1-670ZA

Pipe, joint *pb116m*

Pipe, joint *pb116m*

3

Collar, r. engine

Collar, r. engine

4

50351-438-000ZD

Plate, fr. *b100mu*

Plate, fr. *b100mu*

4

50351-438-000ZC

Plate, fr. *pb116m*

Plate, fr. *pb116m*

5

50352-438-000ZD

Plate, l. *b100mu*

Plate, l. *b100mu*

5

50352-438-000ZC

Plate *pb116m*

Plate *pb116m*

6

50353-438-000ZD

Plate b *b100mu*

Plate b *b100mu*

6

50353-438-000ZC

Plate b *pb116m*

Plate b *pb116m*

7

50354-438-010ZD

Plate a *b100mu*

Plate a *b100mu*

7

50354-438-010ZC

Plate a *pb116m*

Plate a *pb116m*

8

50356-425-020ZA

Brkt,hanger*nh-1*

Brkt,hanger*nh-1*

9

Mark,bat.caution

Mark,bat.caution

10

Болт

Болт

11

Bolt, flg (10x330)

Bolt, flg (10x330)

12

Bolt (12x287)

Bolt (12x287)

13

Bolt, flg (10x284)

Bolt, flg (10x284)

14

Nut, flange, 8mm

Nut, flange, 8mm

15

Nut,fla.cap 12mm

Nut,fla.cap 12mm

16

Гайка(10mm)

Гайка(10mm)

17

Гайка (10mm)

Гайка (10mm)

18

95801-080-550-7

Болт

Болт

19

95801-100-600-7

Болт

Болт
