Редуктор для мотоциклов Honda CB700SC Nighthawk (1986)

Москва и регионы России

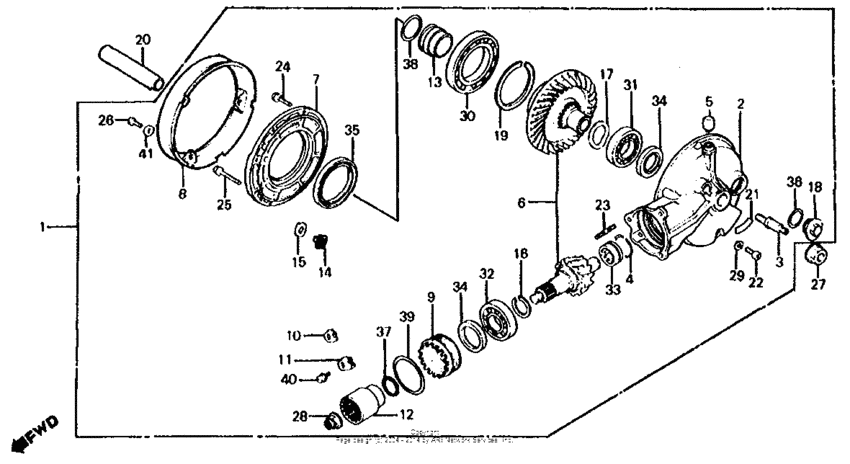

Редуктор

Honda CB700SC Nighthawk

Редуктор

Редуктор

1

2

2

3

4

5

5

6

7

8

9

10

11

12

13

14

15

15

16

16

16

16

16

16

16

16

16

16

16

16

16

16

17

18

19

19

19

19

19

19

19

19

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

33

34

34

35

36

37

38

39

39

40

40

41

#

oem код

название

цена

1

Gear assy.,final

Gear assy.,final

2

Case, final gear

Case, final gear

Use from Frame SN GM203089

2

Case, final gear

Case, final gear

Use up to Frame SN GM203088

3

Stay, rubber (lower)

Stay, rubber (lower)

4

Кольцо

Кольцо

Use from Frame SN GM203089

5

Сапун

Сапун

5

Cap, breather

Cap, breather

6

Gear set, final

Gear set, final

7

Крышка редуктора

Крышка редуктора

замена

Крышка редуктора

Крышка редуктора

8

Plate, dust guard

Plate, dust guard

9

Retainer,bearing

Retainer,bearing

10

Lock a, bearing adj.

Lock a, bearing adj.

11

Lock b, bearing adj.

Lock b, bearing adj.

12

Joint,pinion

Joint,pinion

13

Holder, o-ring

Holder, o-ring

14

Штифт

Штифт

15

Shim b (0.15)

Shim b (0.15)

15

Shim a (0.10)

Shim a (0.10)

16

Shim g (2.18)

Shim g (2.18)

Use from Frame SN GM203089

16

Shim f (2.12)

Shim f (2.12)

Use from Frame SN GM203089

16

Shim e (2.06)

Shim e (2.06)

Use from Frame SN GM203089

16

Shim d (2.00)

Shim d (2.00)

Use from Frame SN GM203089

16

Shim c (1.94)

Shim c (1.94)

Use from Frame SN GM203089

16

Shim b (1.88)

Shim b (1.88)

Use from Frame SN GM203089

16

Shim a (1.82)

Shim a (1.82)

Use from Frame SN GM203089

16

Shim g (2.18)

Shim g (2.18)

Use up to Frame SN GM203088

16

Shim f (2.12)

Shim f (2.12)

Use up to Frame SN GM203088

16

Shim e (2.06)

Shim e (2.06)

Use up to Frame SN GM203088

16

Shim d (2.00)

Shim d (2.00)

Use up to Frame SN GM203088

16

Shim c (1.94)

Shim c (1.94)

Use up to Frame SN GM203088

16

Shim b (1.88)

Shim b (1.88)

Use up to Frame SN GM203088

16

Shim a (1.82)

Shim a (1.82)

Use up to Frame SN GM203088

17

Шайба

Шайба

18

Cap, gear case oil

Cap, gear case oil

19

Spacer i (2.30)

Spacer i (2.30)

19

Spacer h (2.24)

Spacer h (2.24)

19

Spacer g (2.18)

Spacer g (2.18)

19

Spacer f (2.12)

Spacer f (2.12)

19

Spacer e (2.06)

Spacer e (2.06)

19

Spacer d (2.00)

Spacer d (2.00)

19

Spacer c (1.94)

Spacer c (1.94)

19

Spacer b (1.88)

Spacer b (1.88)

19

Spacer a (1.82)

Spacer a (1.82)

20

Collar b, rr.

Collar b, rr.

21

Caut final g/oil

Caut final g/oil

22

Bolt, socket (8x11)

Bolt, socket (8x11)

23

Bolt stud 10x50

Bolt stud 10x50

24

Болт

Болт

25

Болт

Болт

26

Болт

Болт

27

Гайка (18mm)

Гайка (18mm)

28

Nut, hex. (16mm)

Nut, hex. (16mm)

29

Прокладка

Прокладка

8MM

30

Bearing (16012c3)

Bearing (16012c3)

31

Bearing (57/34c3)

Bearing (57/34c3)

32

Подшипник (6305)

Подшипник (6305)

33

Bearing (19/18)

Bearing (19/18)

Use from Frame SN GM203089

33

Bearing (19/16)

Bearing (19/16)

Use up to Frame SN GM203088

34

Сальник (34x50x7)

Сальник (34x50x7)

35

Oil seal (60x80x8)

Oil seal (60x80x8)

36

O-ring, 30.8mm

O-ring, 30.8mm

37

Прокладка

Прокладка

22.1X2

38

Прокладка

Прокладка

39

O-ring, 58.5x3.5

O-ring, 58.5x3.5

39

Прокладка

Прокладка

40

Болт

Болт

HEX., 6X12

40

Болт

Болт

41

Шайба

Шайба

PLAIN, 6MM
