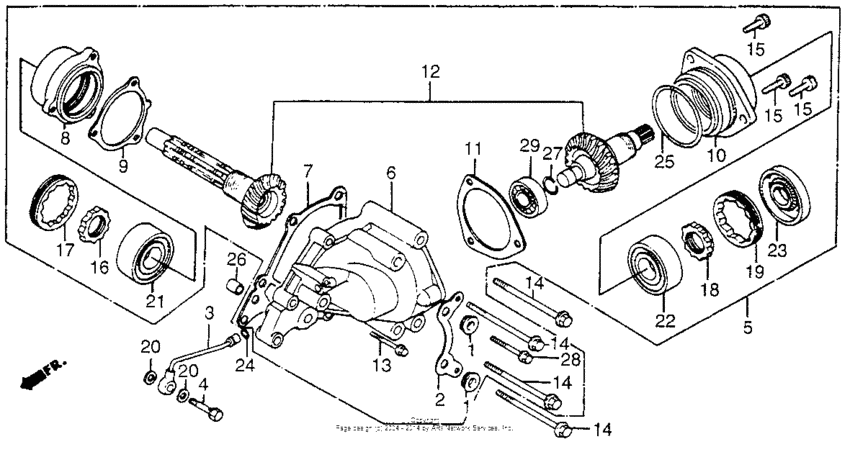

Side gear case

Honda CB650SC

Honda
Side gear case
#oem кодцена
1
11345-MB0-000
Grommet b, rr. cover
2
11363-ME5-000
Stay, l. side cover
3
15560-ME5-000
Pipe, trans oil
4
15566-ME5-000
Bolt,oil 8x41
5
21100-ME5-010
Case,side gear
6
21200-ME5-000
Gear case,side
7
21291-ME5-306
Gskt, side gear case
8
21301-ME5-000
Hldr,counter brg
9
21325-ME5-000
Shim,c/shaft 0.6
9
21324-ME5-000
Shim,c/shaft 0.55
9
21323-ME5-000
Shim,c/shaft 0.5
9
21322-ME5-000
Shim,c/shaft 0.45
9
21321-ME5-000
Shim,c/shaft 0.4
10
21371-ME5-010
Hold,cross,brg.
11
21387-ME5-000
Shim,cross 0,50
11
21386-ME5-000
Shim,cross 0,45
11
21385-ME5-000
Shim,cross 0.4
11
21384-ME5-000
Shim,cross 0.35
11
21383-ME5-000
Shim.cross 0.3
11
21382-ME5-000
Shim,cross 0.25
11
21381-ME5-000
Shim,cross 0.2
12
23200-ME5-000
Shaft set,cross
13
90045-ME5-000
Bolt, ubs (8x55)
14
90046-ME5-000
Bolt, ubs (8x87)
15
90061-MB0-000
Болт (8x22)
16
90241-MB0-000
Nut, lock, 30mm
17
90242-MB0-000
Nut, lock, 64mm
18
90243-ME5-000
Nut, lock (28mm)
19
90244-ME5-000
Nut,lock,60mm
19
90244-HA0-000
Nut, lock (60mm)
20
90475-703-000
Washer c (8mm)
21
91012-MG7-003
Bearing (5206)
22
91006-KBA-901
Bearing (62/28)
23
91205-ME5-003
Oil seal (25x61x8.5)
24
91304-ME5-003
O-ring, 5.1x2.2 (arai)
25
91362-461-000
Прокладка
26
94301-10160
Палец
27
94601-13000
Clip, piston pin, 13mm
28
95701-0603200
Bolt, flange, 6x32
29
96100-6302000
Bearing, radial ball, 6302
