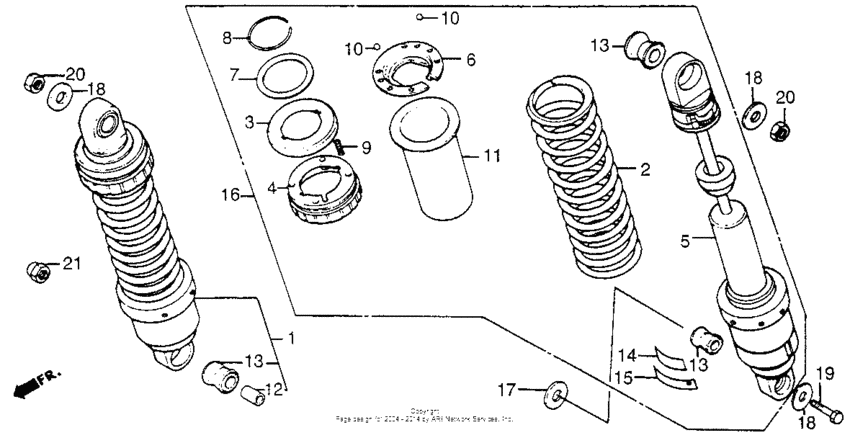

Rear shock absorber 83-84

Honda CB650SC

Honda
Rear shock absorber 83-84
#oem кодцена
1
52400-ME5-671
Cushion assy,r.rr
2
52401-ME5-003
Spring,rr.cushion
3
52402-ME5-003
Case a,adjuster
4
52403-ME5-003
Case b,adjuster
5
52410-ME5-671
Damper comp,rear
6
52451-ME5-003
Seat,lock
7
52452-ME5-003
Stopp,spring seat
8
52453-ME5-003
Кольцо стопорное
9
52454-ME5-003
Spring,oil
10
52456-ME5-003
Шарик
11
52462-ME5-003
Направляющая
12
52486-463-000
Collar, rr. shock
13
52489-461-771
Bush, rubber (upper)
14
52495-MB1-670
Emblem, rr. shock
15
52496-MB4-003
Label a
16
52500-ME5-671
Cushion assy,l.rr
17
90439-463-000
Washer, plain, 16mm
18
90521-292-000
Шайба
19
93201-100-350-B
Болт
20
94001-100-000-S
Гайка
21
94021-100200S
Nut, cap (10mm)
