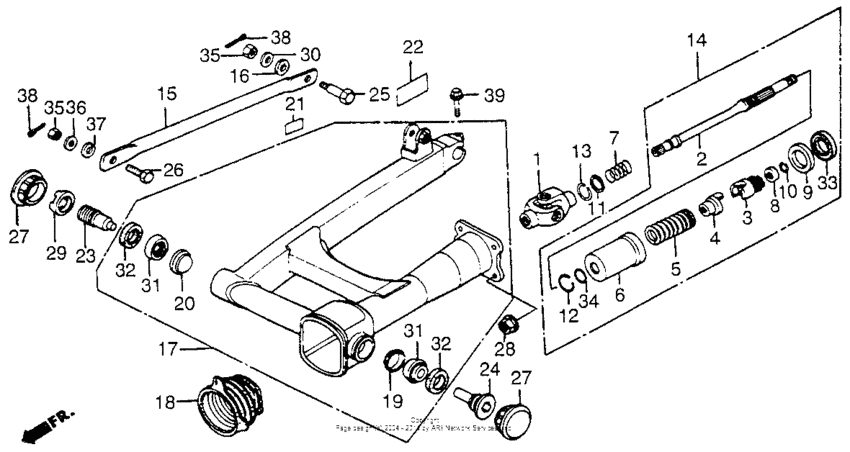

Swingarm + drive shaft

Honda CB650SC

Honda
Swingarm + drive shaft
#oem кодцена
1
40200-ME5-010
Joint comp.,yoke
2
40201-ME5-310
Гребной вал
3
40211-ME5-000
Cam,damper
4
40212-ME5-000
Lifter,damper
5
40213-ME5-000
Spg.,cam damper
6
40214-ME5-000
Cover,damper
7
40215-ME5-000
Spg.,prop.shaft
8
40216-ME5-020
Stopper,spg.
9
40217-MB0-010
Guide,oil seal
10
40218-ME5-000
Ring,spg.stopper
11
40219-ME5-000
Стопорное кольцо
12
40221-MB0-000
Кольцо
12
40220-ME5-000
Ring,damper cover
13
40222-ME5-000
Stop,propel,shaft
14
40250-ME5-000
Shaft assy.,prop.
15
43431-415-010
Arm, rr.
16
43434-ME1-670
Rubber, stopper arm
17
52100-ME5-000ZA
Fork,rr.*nh-1*
18
52105-ME5-000
Boot,joint
19
52118-ME5-004
Plate,dust seal
20
52118-415-000
Plate, dust seal
22
87505-ME5-670
Label, tire caution
23
90121-ME5-000
Bolt, r. rr.
24
90124-ME5-000
Bolt,l.rr.fork
25
90127-393-000
Bolt, rr
26
90133-286-000
Bolt, rr
27
90302-ME5-000
Cap, r. lock nut
28
90308-ME5-000
Nut,hex.,10mm
29
90354-ME5-000
Nut, lock (23mm)
30
90524-030-000
Шайба
30
90505-425-000
Washer, 8mm
31
91066-415-006
Bearing (30202)
32
91266-ME5-003
Oil seal, 20x35x5
33
91271-MB0-013
Oil seal 47x56x7
34
91361-ME5-003
Прокладка
35
94001-080-000-S
Гайка
36
94101-08000
Шайба
37
94111-10000
Шайба
38
9420120350
Штифт
38
94201-20220
Штифт
38
94201-29220
Штифт
39
95701-0803200
Bolt, flange, 8x32
