Рама для мотоциклов Honda CB650 (1979)

Москва и регионы России

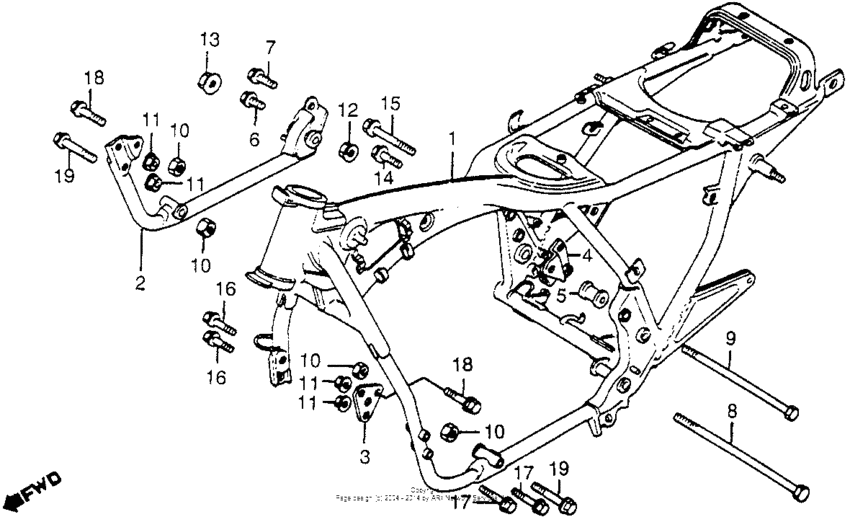

Рама

Honda CB650

Рама

Рама

1

2

3

4

5

6

7

8

9

10

10

10

10

11

11

11

11

12

13

14

15

16

16

17

17

18

18

19

19

#

oem код

название

цена

1

50100-426-671ZA

Frame *nh1*

Frame *nh1*

Use up to Frame SN 2017756

2

Sub frame comp.

Sub frame comp.

3

50351-323-010-B

Bracket,fr engine

Bracket,fr engine

4

Bracket, rr. eng hgr

Bracket, rr. eng hgr

5

Collar,l eng un

Collar,l eng un

6

Bolt, flange, 8x20

Bolt, flange, 8x20

7

Bolt,flg.8x28

Bolt,flg.8x28

8

Bolt,12x330

Bolt,12x330

9

Bolt,rr eng upper

Bolt,rr eng upper

10

Nut, hex., 10mm

Nut, hex., 10mm

11

Гайка

Гайка

FLANGE, 8MM

12

Гайка

Гайка

FLANGE, 10MM

13

Nut, flange, 12mm

Nut, flange, 12mm

14

Bolt, flange, 8x40

Bolt, flange, 8x40

15

Болт

Болт

16

95800-080-350-0

Bolt,frang,8x35

Bolt,frang,8x35

17

95800-080-550-0

Bolt,flange 8x55

Bolt,flange 8x55

18

Болт

Болт

19

95801-100-800-0

Болт

Болт
