Cb650 rear wheel 80-82 для мотоциклов Honda CB650 (1982)

Москва и регионы России

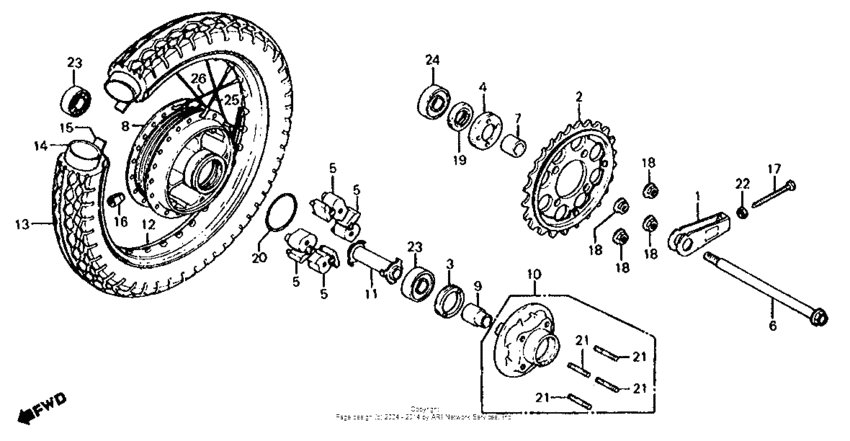

Cb650 rear wheel 80-82

Honda CB650

Cb650 rear wheel 80-82

Cb650 rear wheel 80-82

1

2

3

4

5

5

5

5

6

7

8

9

10

11

12

13

13

14

14

15

15

16

16

16

16

17

18

18

18

18

19

20

21

21

21

21

22

23

23

24

25

26

#

oem код

название

цена

1

Adjr,drive chain

Adjr,drive chain

2

Sprkt,comp,driven

Sprkt,comp,driven

3

Retainer rr wheel

Retainer rr wheel

4

Ret,rr.wheel brg.

Ret,rr.wheel brg.

5

Damper,rr.wheel

Damper,rr.wheel

6

Axle,rr.wheel

Axle,rr.wheel

7

Collar,wheel side

Collar,wheel side

замена

Coller,rr.wheel

Coller,rr.wheel

8

Hub,rr.wheel

Hub,rr.wheel

9

Sleeve rr axle

Sleeve rr axle

10

Flange,finaldrive

Flange,finaldrive

11

Collar, rr. distance

Collar, rr. distance

12

Rim,rr.wheel

Rim,rr.wheel

13

Tire (4.50h17) (4pr)

Tire (4.50h17) (4pr)

13

Tire (4.50h17) (4pr)

Tire (4.50h17) (4pr)

14

Tube, tire (120/90-17) (bs)

Tube, tire (120/90-17) (bs)

14

Tube, tire (5.10-17)

Tube, tire (5.10-17)

15

Flap,tire

Flap,tire

15

Flap,tire

Flap,tire

16

Балансир колеса

Балансир колеса

16

Балансир колеса

Балансир колеса

16

Балансир колеса

Балансир колеса

16

Балансир

Балансир

17

Bolt,chain adjust

Bolt,chain adjust

18

Гайка (12mm)

Гайка (12mm)

19

Oil seal, 34559

Oil seal, 34559

20

D ring,

D ring,

21

Bolt,stud,12x55

Bolt,stud,12x55

22

94002-080-000-S

Гайка

Гайка

HEX., 8MM

23

Bearing (6304u)

Bearing (6304u)

24

96140-630-501-0

B/brg rad n/com

B/brg rad n/com

25

97C31-690-94R-0

Spoke,bs,8x127

Spoke,bs,8x127

26

97342-690-95R-0

Spoke bs,8x127.5

Spoke bs,8x127.5
