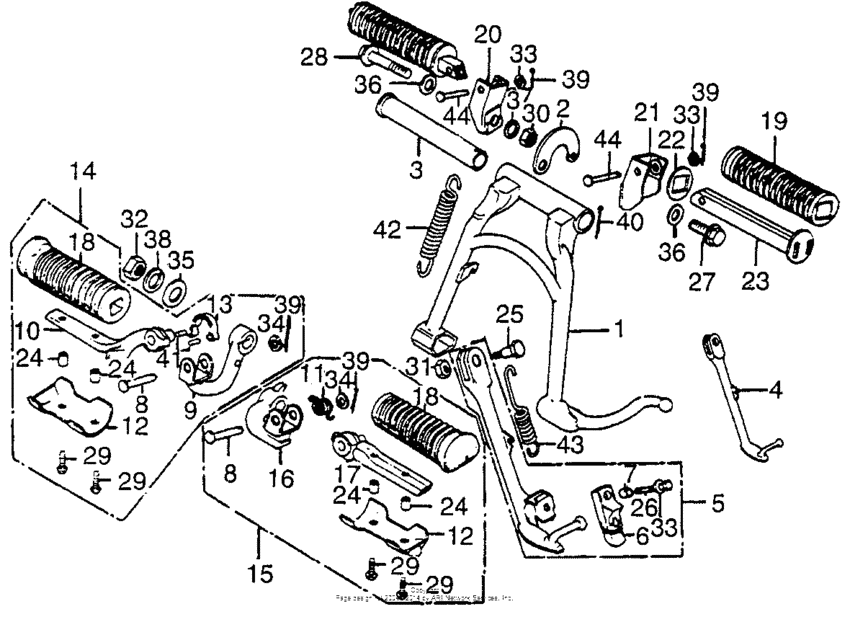

Step + stand для мотоциклов Honda CB550 (1976)

Москва и регионы России

Step + stand

Honda CB550

Step + stand

Step + stand

1

2

3

5

6

7

8

8

9

10

11

12

12

13

14

15

16

17

18

18

19

20

21

22

23

24

24

24

24

25

26

27

28

29

29

29

29

30

31

32

33

33

33

34

34

35

36

36

37

38

39

39

39

39

40

41

42

43

44

44

#

oem код

название

цена

1

Stand comp., main

Stand comp., main

2

Plate main stand

Plate main stand

3

Трубка

Трубка

5

Bar,side stand

Bar,side stand

6

Rubber, stand

Rubber, stand

7

Манжета

Манжета

8

Палец

Палец

9

Bar comp,r.step

Bar comp,r.step

10

Arm, right step

Arm, right step

11

Пружина

Пружина

12

Stopper,step rub.

Stopper,step rub.

13

Spg.l.step rtn.

Spg.l.step rtn.

14

Step assy., right

Step assy., right

15

Step assy., left

Step assy., left

16

Bar comp,l.step

Bar comp,l.step

17

Arm, left step

Arm, left step

18

Rubber,step

Rubber,step

19

Rub, pillion footpeg

Rub, pillion footpeg

20

Bracket,r.pillion

Bracket,r.pillion

21

Bracket,l.pillion

Bracket,l.pillion

22

Washer,pillion

Washer,pillion

23

Bar,pillion step

Bar,pillion step

24

Collar no bracket

Collar no bracket

25

Screw,pivot

Screw,pivot

26

Болт

Болт

27

Bolt, hex., 10x32

Bolt, hex., 10x32

28

Болт

Болт

29

Screw, pan, 6x18

Screw, pan, 6x18

30

94001-100-000-S

Гайка

Гайка

HEX., 10MM

31

94002-100-000-S

Гайка

Гайка

HEX., 10MM

32

Nut, hex., 12mm

Nut, hex., 12mm

33

Шайба

Шайба

PLAIN, 6MM

34

Шайба

Шайба

PLAIN, 8MM

35

Шайба

Шайба

PLAIN, 12MM

36

Washer, plain, 10mm

Washer, plain, 10mm

37

Шайба

Шайба

SPRING, 10MM

38

Шайба

Шайба

SPRING, 12MM

39

Штифт

Штифт

40

Pin, split, 2.5x30

Pin, split, 2.5x30

41

Pin, spring, 4x16

Pin, spring, 4x16

42

Spring g, main stand

Spring g, main stand

43

Spring d, side stand

Spring d, side stand

44

Pin c

Pin c
