Rear shock absorber (2) для мотоциклов Honda CB550 (1977)

Москва и регионы России

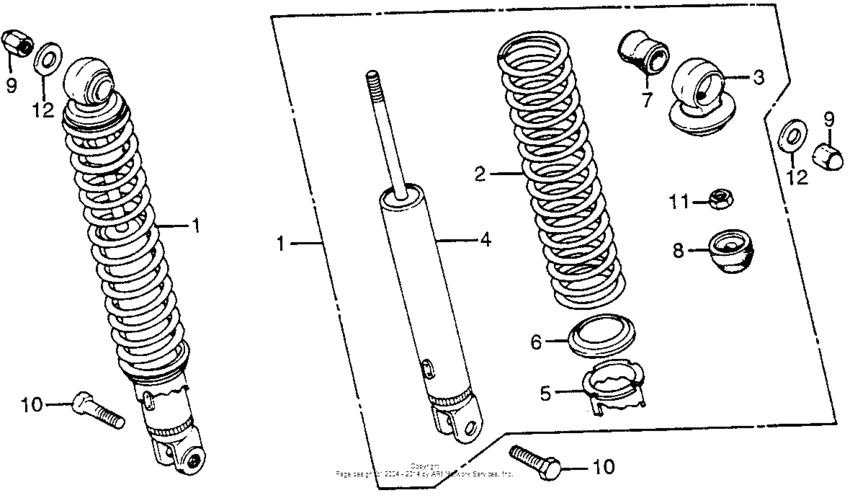

Rear shock absorber (2)

Honda CB550

Rear shock absorber (2)

Rear shock absorber (2)

1

1

2

3

4

5

6

7

8

9

9

10

10

11

12

12

#

oem код

название

цена

1

Cushion assy,rr.

Cushion assy,rr.

Use from Frame SN 2115989

2

Spring,rr cushion

Spring,rr cushion

Use from Frame SN 2115989

3

Joint comp,upper

Joint comp,upper

Use from Frame SN 2115989

4

Damper comp., rr.

Damper comp., rr.

Use from Frame SN 2115989

5

Регулировщик

Регулировщик

Use from Frame SN 2115989

6

Seat,under spring

Seat,under spring

Use from Frame SN 2115989

7

Rubber, joint

Rubber, joint

Use from Frame SN 2115989

8

Отбойник

Отбойник

Use from Frame SN 2115989

9

Гайка(10mm)

Гайка(10mm)

Use from Frame SN 2115989

10

93101-100-320-A

Болт

Болт

Use from Frame SN 2115989

11

94002-100-000-S

Гайка

Гайка

HEX., 10MM Use from Frame SN 2115989

12

Шайба

Шайба

Use from Frame SN 2115989
