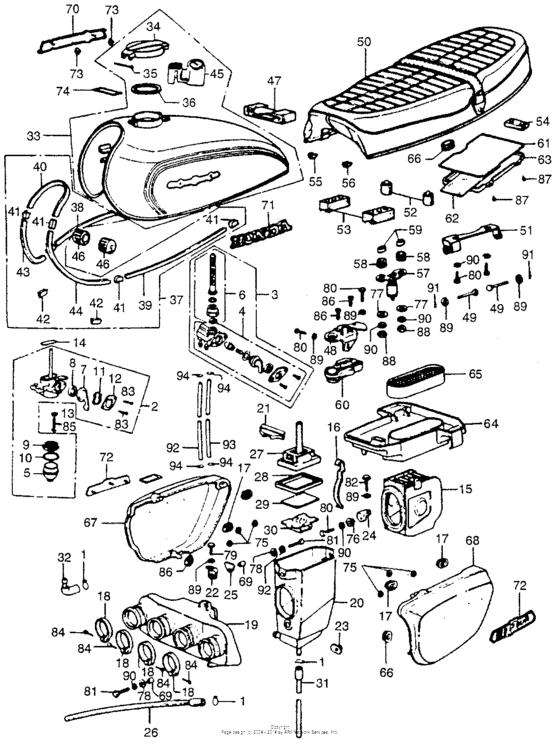

Fuel tank + air cleaner

Honda CB550

Honda
Fuel tank + air cleaner
#oem кодцена
1
15772-292-010
Зажим
3
16950-374-671
Cock.fuel,cb550f
4
16951-374-671
Cock body kit
6
16952-341-671
Фильтр
15
17210-374-P00
Фильтр воздушный
16
17216-323-020
Spring,cleaner
17
17247-303-000
Grommet a,cleaner
18
17255-323-000
Band a, air cleaner connecting tube
19
17310-323-010-B
Chamber,cleaner
20
17313-374-003
Housing, a/clnr elem
21
17315-323-000
Cover,air cleaner
22
17317-323-010
Stay,air cleaner
23
17318-323-000
Washer,element
24
17319-323-000
Stay,air cleaner
25
17331-323-000
Plate,air cleaner
26
17335-323-000
Трубка
27
17350-374-003
Cover,element
28
17351-374-003
Seal,elementcover
29
17352-374-003
Элемент
30
17353-374-003
Seal plate
31
17358-374-000
Tube assy.,drain
32
17359-374-000
Piece,air cleaner
33
17050-374-010QJ
Tank *r2ch/nh1*
33
17050-374-010KD
Tank, fuel *g1c/nh1*
33
17050-374-000QJ
Tank *r2ch/nh1*
34
17510-323-310
Cap,fuel tank
35
17514-323-300
Pin b,fuel cap
36
17534-323-300
Packing,fuel cap
37
17540-323-000
Mole set,fuel
38
17541-323-000
Mole,r fuel tank
39
17542-323-000
Mole,l fuel tank
40
17543-323-000
Mole,tank middle
41
17544-323-000
Clip a,tank mole
42
17545-323-010
Clip b,tank mole
43
17548-323-000
Moul,r.middletank
44
17549-323-000
Moul,l.middletank
45
17550-377-315
Check assy.,cap
46
17611-283-010
Cushion, tank
47
17613-286-000
Cushion,fuel tank
48
50223-323-010
Plate,seat lock
49
77103-313-000
Bar,seat.hinge
50
77200-374-003
Seat comp.,double
51
77201-323-010
Петля сиденья
52
77204-286-020
Rubber,seat sett.
53
77204-292-000
Rubber, seat setting
54
77204-312-000
Rubber, seat setting
55
77211-323-300
Garnish,r.seat
56
77212-323-300
Garnish,l.seat
57
77220-340-003
Bar assy., seat lock
58
77228-340-003
Rubber, seat lock bar cushion
59
77229-340-003
Colr, seat lock bar
60
77230-107-711
Защелка сиденья
61
77250-342-300
Lid,seat under
62
77251-342-000
Чехол для сервисной книги
63
77260-323-300
Lid,seat
64
83501-323-020
Tray,tool
65
83502-323-000
Net,tool tray
66
83551-300-000
Grommet, air cleaner case
67
83600-323-020KB
Cover,r side
67
83600-323-020LV
Cover,r.side
68
83700-323-020KB
Cover,l side
68
83700-323-020LV
Cover,l.side
69
84705-310-000
Collar, rr. fender
70
87121-300-030
Emblem,r.tank
71
87121-300-030
Emblem,r.tank
72
87124-374-000
Emblem,side cover
73
87311-634-600
Nut emblem
замена
87311-516-000
Nut,rear ornament
74
87560-323-670ZA
Mark,drive c*nh1*
74
87560-323-670-A
Mark,caution
75
90315-504-000
Гайка
76
90512-300-000
Шайба
77
94103-06800
Шайба
78
90581-831-650
Шайба
79
92101-06012-0A
Болт
79
9210106012
Болт
80
92101-06016-0A
Болт
81
92101-06025-0A
Bolt, hex., 6x25
82
92101-06040-0A
Bolt, hex., 6x40
83
93500-030060A
Screw, pan, 3x6
84
93500-040200A
Screw, pan, 4x20
85
93500-060-320-A
Болт
86
93600-060-160-G
Болт
87
93901-25080
Болт
88
94001-062-000-S
Гайка
89
94101-06800
Шайба
90
94111-06000
Шайба
91
94251-06000
Штифт
92
95001-550-0360M
Шланг(5.5x3000)
93
95001-550-0360M
Шланг(5.5x3000)
93
17516-ME9-000
Tube,l.carbu fuel
94
95002-02100
Зажим
