Топливный бак для мотоциклов Honda CB550 (1978)

Москва и регионы России

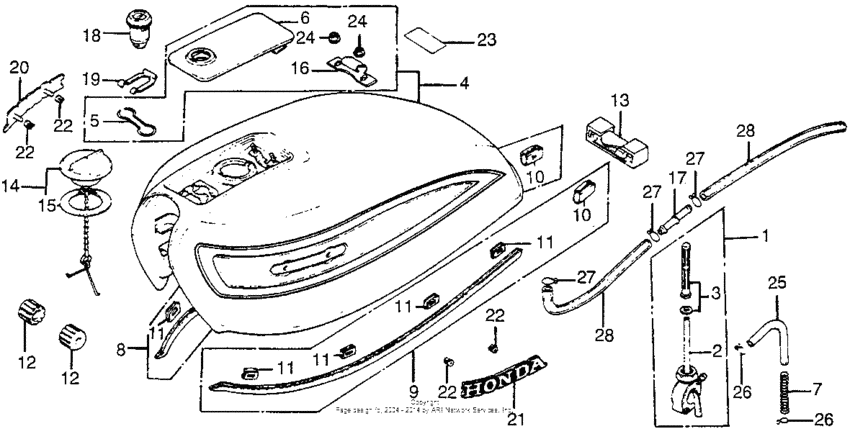

Топливный бак

Honda CB550

Топливный бак

Топливный бак

1

2

3

4

4

5

6

6

8

9

10

10

11

11

11

11

11

12

12

13

14

15

16

17

18

19

20

21

22

22

22

22

23

24

24

25

26

26

27

27

27

28

28

#

oem код

название

цена

1

Cock assy.,fuel

Cock assy.,fuel

Use up to Frame SN 2121557

2

Body set,cock

Body set,cock

Use up to Frame SN 2121557

3

Screew set,strn.

Screew set,strn.

Use up to Frame SN 2121557

4

17520-404-770ZB

Tk sub, fuel *nh1*

Tk sub, fuel *nh1*

4

17520-404-770ZA

Tk sub, fuel *r9cs*

Tk sub, fuel *r9cs*

5

Clip, filler lock

Clip, filler lock

6

17531-404-670ZE

Lid *r9cs*

Lid *r9cs*

6

17531-404-670ZC

Lid,filler*nh-1*

Lid,filler*nh-1*

8

Mole,r.fuel tank

Mole,r.fuel tank

9

Mole,l.fuel tank

Mole,l.fuel tank

10

Clip a,tank mole

Clip a,tank mole

11

Clip b,tank mole

Clip b,tank mole

12

Cushion, tank

Cushion, tank

13

Cushion,fuel tank

Cushion,fuel tank

14

Cap comp.,fuel ta

Cap comp.,fuel ta

15

Packing, fuel filler cap (39x58x3)

Packing, fuel filler cap (39x58x3)

16

Spring,tank lid

Spring,tank lid

17

Joint,drain tube

Joint,drain tube

18

Lock,filler lid

Lock,filler lid

19

Spring, lock set

Spring, lock set

20

Emb.,r.fuel tank

Emb.,r.fuel tank

21

Emb.,l.fuel tank

Emb.,l.fuel tank

22

Nut emblem

Nut emblem

замена

Nut,rear ornament

Nut,rear ornament

23

87560-375-680ZF

Mark (typew)

Mark (typew)

24

Гайка

Гайка

FLANGE, 6MM

25

95001-550-0360M

Шланг(5.5x3000)

Шланг(5.5x3000)

26

Зажим

Зажим

TUBE(B10)

27

Зажим шланга (b12.5)

Зажим шланга (b12.5)

28

95003-270-5031S

Tube (9x13x500)

Tube (9x13x500)
