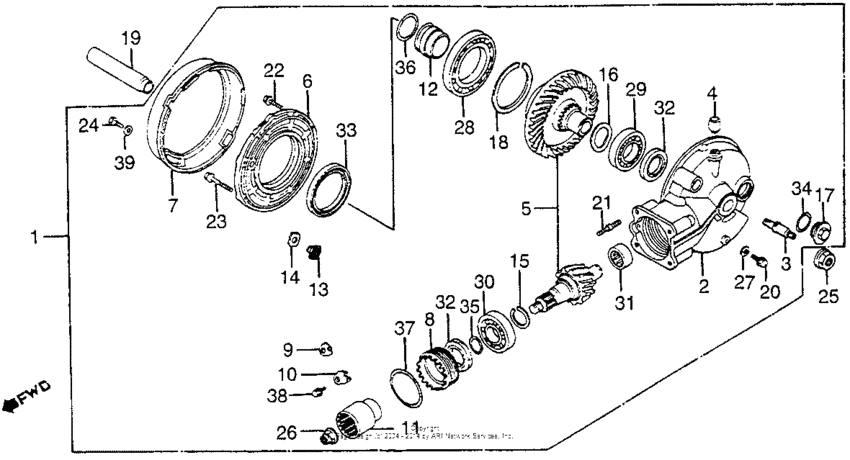

Редуктор

Honda CB550

Honda
Редуктор
#oem кодцена
1
41300-ME4-000
ШЕСТЕРНЯ, ВЕДОМАЯ (38T)
2
41301-ME4-000
Case, final gear
3
41303-ME4-300
Stay,cush.under
4
41306-ME5-305
Сапун
4
41306-MB0-020
Cap, breather
5
41310-ME4-305
Gear set,final
6
41321-ME4-000
Крышка редуктора
7
41324-ME4-000
Plate, dust guard
8
41331-ME4-000
Обойма подшипника
9
41332-415-000
Lock a, bearing adj.
10
41333-415-000
Lock b, bearing adj.
11
41410-ME4-000
Joint,pinion
12
41433-ME4-000
Holder,o-ring
13
41436-MB0-310
Штифт
14
41438-MB0-310
Shim b (0.15)
14
41437-MB0-310
Shim a (0.10)
15
41456-ME4-000
Shim g,pini gear
15
41455-ME4-000
Shim f,pini gear
15
41454-ME4-000
Shim e,pini gear
15
41453-ME4-000
Shim d,pini gear
15
41452-ME4-000
Shim c,pini gear
15
41451-ME4-000
Shim b,pini.gear
15
41450-ME4-000
Shim a,pini.gear
16
41510-ME4-003
Wash,spcl,31x40
17
41511-ME5-000
Cap, gear case oil
18
41538-ME4-000
Space i,ring gear
18
41537-ME4-000
Space h,ring gear
18
41536-ME4-000
Space g,ring gear
18
41535-ME4-000
Space f,ring gear
18
41534-ME4-000
Space e,ring gear
18
41533-ME4-000
Space d,ring gear
18
41532-ME4-000
Space c,ring gear
18
41531-ME4-000
Space b,ring gear
18
41530-ME4-000
Space a,ring gear
19
42625-ME4-000
Collar b, rr.
20
90109-371-000
Bolt, sealing, 8mm
21
90125-ME4-000
Bolt,stud,8x40
22
90133-MB0-000
Болт
23
90134-371-000
Болт
24
90170-MB0-000
Болт
25
90305-GE8-003
Гайка (14mm)
26
90381-MB0-010
Nut, hex. (16mm)
27
90471-580-000
Прокладка
28
91051-ME4-003
B/brg rad n/com
29
91052-ME4-003
B/brg rad n/com
30
91061-ME4-004
Bearing (22x56x16)
31
91062-ME4-003
Подшипник игольчатый
32
91261-ME4-003
Oil seal,30x45x7
33
91265-ME4-003
Oil seal,55x80x7
34
91302-001-020
O-ring, 30.8mm
35
91355-ME4-003
O-ring,19x1.9
36
91307-MC8-005
O-ring,32.5x2.5
37
91359-ME4-003
O-ring,53.5x3.5
38
92101-06012-0A
Болт
38
9210106012
Болт
39
94101-06800
Шайба
