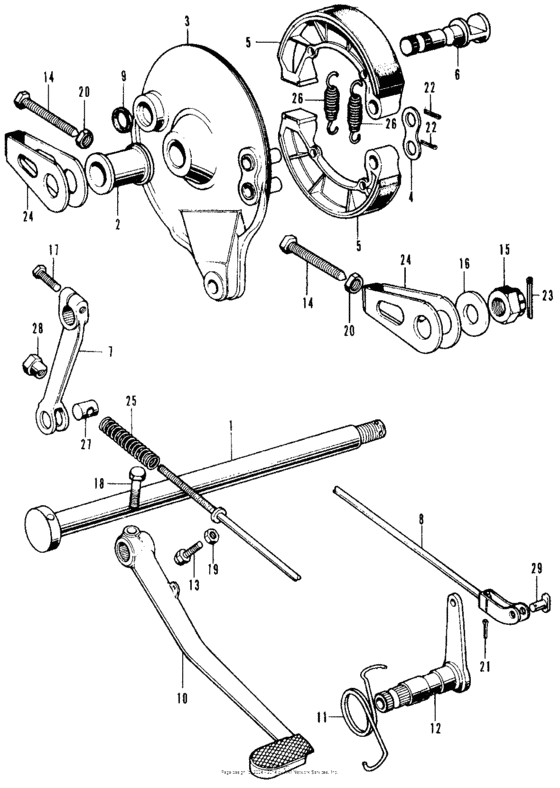

Rear brake panel + brake pedal

Honda CB500

Rear brake panel + brake pedal

Rear brake panel + brake pedal

1

2

3

4

5

5

6

7

8

9

10

11

12

13

14

14

15

16

17

18

19

20

20

21

22

22

23

24

24

25

26

26

26

26

27

28

29

#

oem код

название

цена

NI

Shoe kit, brake

Shoe kit, brake

1

Axle,rear wheel

Axle,rear wheel

2

Collar,rr brk pnl

Collar,rr brk pnl

3

Панель

Панель

Use up to Frame SN 2052650

4

Washer, anchor pin

Washer, anchor pin

5

Shoe kit, brake

Shoe kit, brake

6

Cam,rear brake

Cam,rear brake

7

Arm,rear brake

Arm,rear brake

8

Rod,rr.brake

Rod,rr.brake

9

Сальник

Сальник

10

Pedal,rear brake

Pedal,rear brake

11

Spring,brk pedal

Spring,brk pedal

12

Shaft,rear brake

Shaft,rear brake

13

Bolt,brake pedal

Bolt,brake pedal

14

Bolt,chain adjust

Bolt,chain adjust

15

Nut, rr. wheel axle

Nut, rr. wheel axle

16

Washer,18.5x38

Washer,18.5x38

17

Болт

Болт

HEX., 6X20

18

Bolt, hex., 8x28

Bolt, hex., 8x28

19

94001-062-000-S

Гайка

Гайка

HEX., 6MM

20

94002-080-000-S

Гайка

Гайка

HEX., 8MM

21

Штифт

Штифт

22

Pin, split, 2.5x30

Pin, split, 2.5x30

23

Pin, split, 4.0x30

Pin, split, 4.0x30

24

Adjuster,chain

Adjuster,chain

25

Пружина

Пружина

26

Spring,rear brake

Spring,rear brake

Use from Frame SN 2052651

26

Spring,brake shoe

Spring,brake shoe

Use up to Frame SN 2052650

27

Соединитель

Соединитель

28

Nut b, brake rod adjusting

Nut b, brake rod adjusting

29

Pin b, brake rod joint

Pin b, brake rod joint
