Muffler + step bar для мотоциклов Honda CB450 (0)

Москва и регионы России

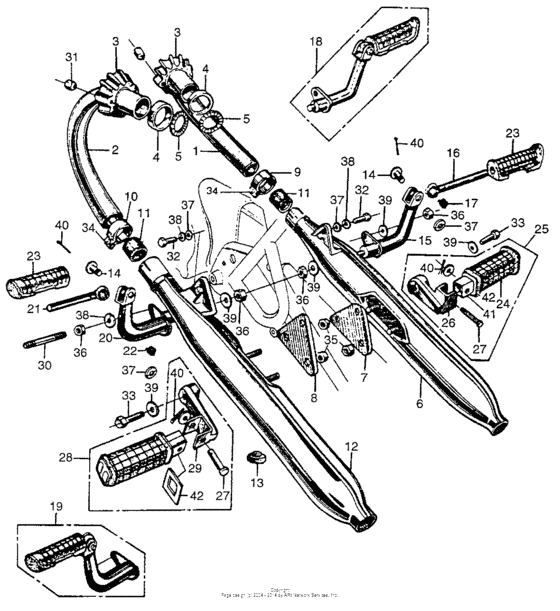

Muffler + step bar

Honda CB450

Muffler + step bar

Muffler + step bar

1

2

3

3

3

3

4

4

4

4

5

5

6

7

8

9

10

11

11

12

13

14

14

15

16

17

18

19

20

21

22

23

23

24

25

26

27

27

28

29

30

31

32

32

33

33

34

34

35

36

36

36

36

37

37

37

37

38

38

38

39

39

39

39

39

40

40

40

40

41

42

42

#

oem код

название

цена

1

Трубка выхлопная

Трубка выхлопная

Use up to Frame SN 1020748

2

Трубка выхлопная

Трубка выхлопная

Use up to Frame SN 1020748

3

Joint,ex pipe

Joint,ex pipe

Use from Frame SN 1020749

3

Joint,exhaust

Joint,exhaust

Use up to Frame SN 1020748

4

Collar,pipe joint

Collar,pipe joint

Use from Frame SN 1020749

4

Collar,ex.pipe

Collar,ex.pipe

Use up to Frame SN 1020748

5

Прокладка

Прокладка

6

Muffler comp.,ex.

Muffler comp.,ex.

7

Bracket,muffler

Bracket,muffler

8

Bracket,muffler

Bracket,muffler

9

Band,r muffler

Band,r muffler

Use up to Frame SN 1020748

10

Band,l muffler

Band,l muffler

Use from Frame SN 1002495 to 1020748

11

Packing,muffler

Packing,muffler

Use up to Frame SN 1020748

12

Muffler comp.,ex.

Muffler comp.,ex.

13

Rubber c, stand stopper

Rubber c, stand stopper

Use from Frame SN 1005945

14

Палец

Палец

15

50615-283-030-B

Bar, r. step *nh1*

Bar, r. step *nh1*

16

50616-283-020-B

Arm,r step

Arm,r step

17

Пружина

Пружина

18

50630-283-010-B

Step assy., right

Step assy., right

19

50640-283-000-B

Step assy., left

Step assy., left

20

50641-283-020-B

Bar, l. step *nh1*

Bar, l. step *nh1*

21

50642-283-020-B

Arm,l step

Arm,l step

22

Пружина

Пружина

23

Rubber,step

Rubber,step

24

Rubber,pillon

Rubber,pillon

Use from Frame SN 1025571

25

Step, pillion

Step, pillion

26

Arm, pillion step

Arm, pillion step

27

Pin c

Pin c

Use from Frame SN 1025571

28

Step, pillion

Step, pillion

Use up to Frame SN 1003768

29

Arm, pillion step

Arm, pillion step

Use from Frame SN 1003769

30

Bolt, eng. hanger

Bolt, eng. hanger

31

Nut, ex. pipe

Nut, ex. pipe

32

Bolt,hex.,8x18

Bolt,hex.,8x18

33

Болт

Болт

34

Screw, pan, 6x14

Screw, pan, 6x14

35

Гайка

Гайка

HEX., 8MM

36

Nut, hex., 10mm

Nut, hex., 10mm

37

Шайба

Шайба

PLAIN, 8MM

38

Шайба

Шайба

SPRING, 8MM

39

Шайба

Шайба

SPRING, 10MM

40

Штифт

Штифт

41

Bar,pillion

Bar,pillion

42

Washer,pillion

Washer,pillion
