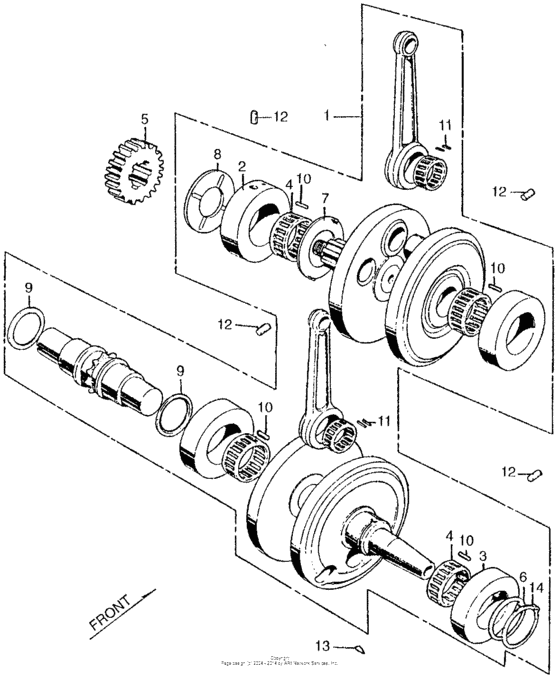

Коленвал для мотоциклов Honda CB450 (0)

Москва и регионы России

Коленвал

Honda CB450

Коленвал

Коленвал

1

2

2

3

3

4

4

4

4

5

6

6

7

7

8

9

9

10

10

10

10

10

10

10

10

11

11

12

12

12

12

13

14

14

#

oem код

название

цена

1

Вал коленчатый

Вал коленчатый

2

Outer race case

Outer race case

Use from Engine SN 3004106

2

Outer race,case

Outer race,case

Use up to Engine SN 3004105

3

Race bearingouter

Race bearingouter

Use from Engine SN 3004106

3

Race,bearingouter

Race,bearingouter

Use up to Engine SN 3004105

4

Retainer,bearing

Retainer,bearing

Use from Engine SN 3004106

4

Retainer,bearing

Retainer,bearing

Use up to Engine SN 3004105

5

Gear,primarydrive

Gear,primarydrive

6

Washer b thrust

Washer b thrust

Use from Engine SN 3004106

6

Washer,thrust 26

Washer,thrust 26

Use up to Engine SN 3004105

7

Washer thrust 34

Washer thrust 34

Use from Engine SN 3004106

7

Washer,thrust 32

Washer,thrust 32

Use up to Engine SN 3004105

8

Washer,thrust 25

Washer,thrust 25

9

Шайба

Шайба

Use from Engine SN 3004106

10

Roller 6x13

Roller 6x13

Use from Engine SN 3004106

10

Roller,5x13

Roller,5x13

Use up to Engine SN 3004105

11

Roller, 3.9x12.5

Roller, 3.9x12.5

12

Pin b

Pin b

DOWEL, 6X10 Use from Engine SN 3020325

13

Ключ

Ключ

WOODRUFF, 25X14

14

Circlip,34mm

Circlip,34mm

Use from Engine SN 3004106

14

Пружинное стопорное кольцо

Пружинное стопорное кольцо

EXTERNAL, 32MM Use up to Engine SN 3004105
